Activate Gateway FIORI Service

Activate gateway FIORI service, once gateway UI5 service is activated.

To activate the Gateway FIORI Service:
  1. Go to transaction code SICF and search for the service minv_fiori_2009.
  2. Right-click the minv_fiori_2009 service under default_host > sap >bc > ui5_ui5 > INVMIM > minv_fiori_2009 and click Activate Service.

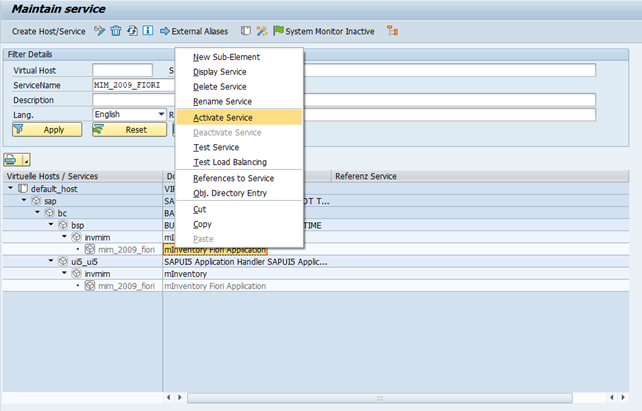

    Figure 1. Activate MIM FIORI Service
  3. Right-click the minv_fiori_2009 service under default_host > sap > bc > bsp > INVMIM > minv_fiori_2009 and click Activate Service
    A message prompts you to activate the service.

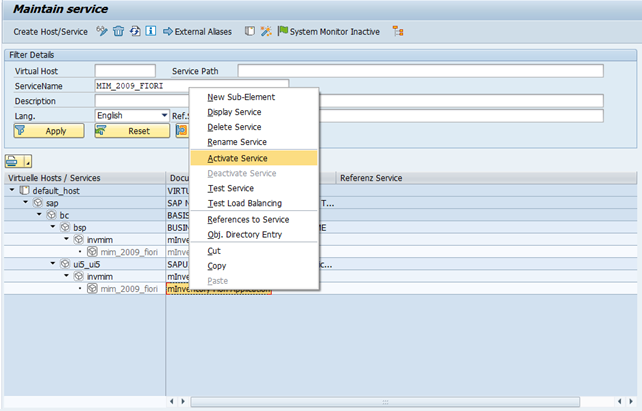

    Figure 2. Activate MIM FIORI Service
  4. Click Yes.

    Access the SAPUI5 web application by replacing the host name, port number and client number in the following template URLs to match your SAP NetWeaver Gateway instance:

    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmim/minv_fiori_2009/index.html?sap-client=100.
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmim/minv_fiori_2009/index.html?sap-client=100&sap-ui-language=EN&sap-ui-appcache=false.
