Activate Gateway UI5 Service

Activate gateway UI5 service, once mInventory OData service is activated.

To activate Gateway UI5 Service:
  1. Go to transaction code SICF and search for the service mim_UI5_2009.
  2. Right-click the mInventoryui5 service under default_host > sap > bc > ui5_ui5 > INVMIM > mim_ui5_2009 and click Activate Service.

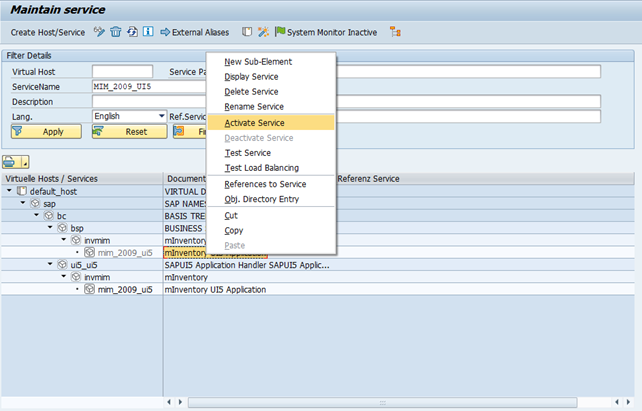

    Figure 1. Activate MIM UI5 Service
  3. Right-click the mInventoryui5 service under default_host > sap > bc > bsp > INVMIM > mim_UI5_2009 and click Activate Service.
    A message prompts you to activate the service.

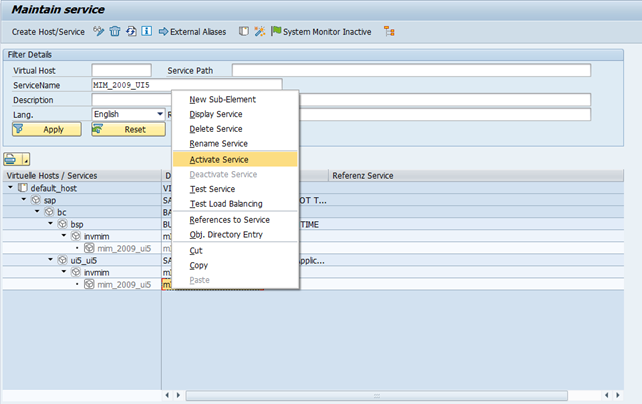

    Figure 2. Activate MIM UI5 BSP Service
  4. Click Yes.
    Access the SAPUI5 web application by replacing the host name, port number and client number in the following template URLs to match your SAP NetWeaver Gateway instance:
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmim/mim_UI5_2009/index.html?sap-client=100.
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmim/mim_UI5_2009/index.html?sap-client=100&sap-ui-language=EN&sap-ui-appcache=false
