Configure staging table for Equipment and Functional Location master

Learn how to configure staging table for standard tables of Equipment and Functional Location master.

This process is applicable only if the Scoping ID APPSTG is enabled in RACE™.

To configure staging table:

  1. In SAP ECC, run T-Code /n/INVMWO/EQ_STG.
  2. Enter selection criteria and execute.
    Figure 1. Equipment Selection Criteria
  3. Entries are shown in these tables:
    1. /INVMWO/EQ_HIERA
    2. /INVMWO/EQ_MEASU
    3. /INVMWO/EQ_H_SUB
    4. /INVMWO/EQ_LIST
    5. /INVMWO/EQ_HEADR
    6. /INVMWO/EQ_GEOLC
    7. /INVMWO/EQ_CLSIT
    8. /INVMWO/EQ_CLSHD
    9. /INVMWO/EQ_PRTNR
    Figure 2. Equipment Hierarchy table
  4. In SAP ECC, run T-Code /n/INVMWO/FL_STG.
  5. Enter selection criteria and execute.

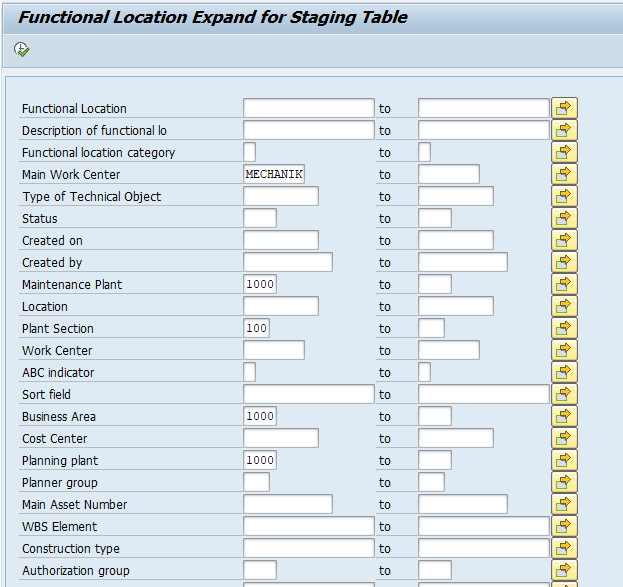

    Figure 3. Functional Location Selection Criteria
  6. Entries are shown in these tables:
    1. /INVMWO/FL_IFLO
    2. /INVMWO/FL_HI_DE
    3. /INVMWO/FCHEADER
    4. /INVMWO/FL_HIER
    5. /INVMWO/FL_MEAS
    6. /INVMWO/NOTF_GEO

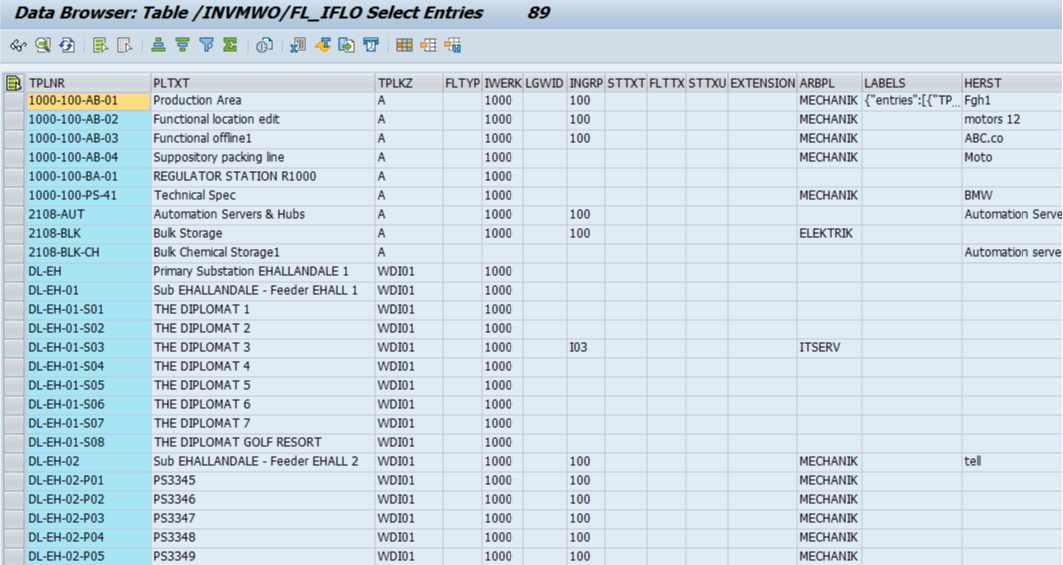

    Figure 4. Functional Location table
    Note: Update the tables with background scheduled jobs regularly.
    • Configure these filters in RACE™, to filter and populate data in the staging table when no value is entered for a field in the selection screen (/INVMWO/FM_EQ_EXPAND_STG).
      Master Filter
      Equipment EQSTG_FILTERs
      Functional Location FLSTG_FILTERs
    • Configure these when using Staging process:
      Table 1. Staging Configuration
      Master Filter Table Name
      Equipment EQSTG_FILTER /INVMWO/EQ_LIST
      Functional Location FLSTG_FILTER /INVMWO/FCHEADER
    Note: Data is filtered only for the fields in tables /INVMWO/FCHEADER and /INVMWO/EQ_LIST.
