Configure Cloud Connector to accept SAML Assertion Token

As Innovapptive servers are set up at various environments, such as Public Cloud and Corporate Network, you use Cloud Connector to securely transmit data from different environments. It is required to establish trust between SCP, Cloud Connector and SAP Gateway System which is on the Corporate Network.

Before configuring, ensure you have:

  • Working Cloud Connector
  • Certificates exchanged between Cloud Connector GW system
  • Access Controls are defined, and resources are available to SCP Server

To configure Cloud Connector to accept SAML Assertion Token:

  1. Login to Cloud Connector and navigate to Account, Principal Prorogation.
  2. Click Synchronize.
    Trust between SCP and ADFS is updated and Cloud Connector accesses the same details.
  3. Configure Trust for dispatcher and mobilejava.
    Once ADFS Server is listed, ensure it is operational as shown below.

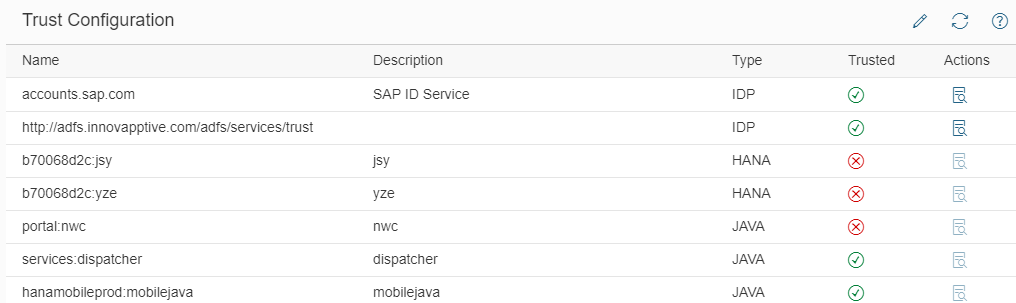

    Figure 1. Trust Configuration
