Configure Cloud Connector

To configure the Cloud Connector:

  1. Go to Configuration menu, On Premise tab.
  2. Upload the Intermediate Certificate to Cloud Connector.

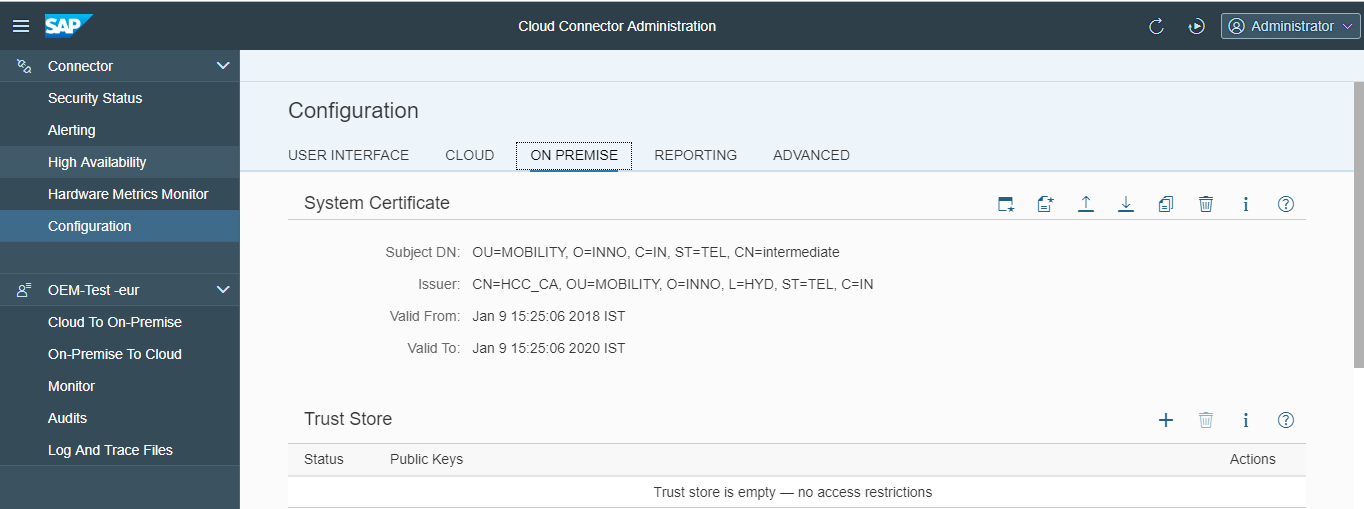

    Figure 1. System Certificate section

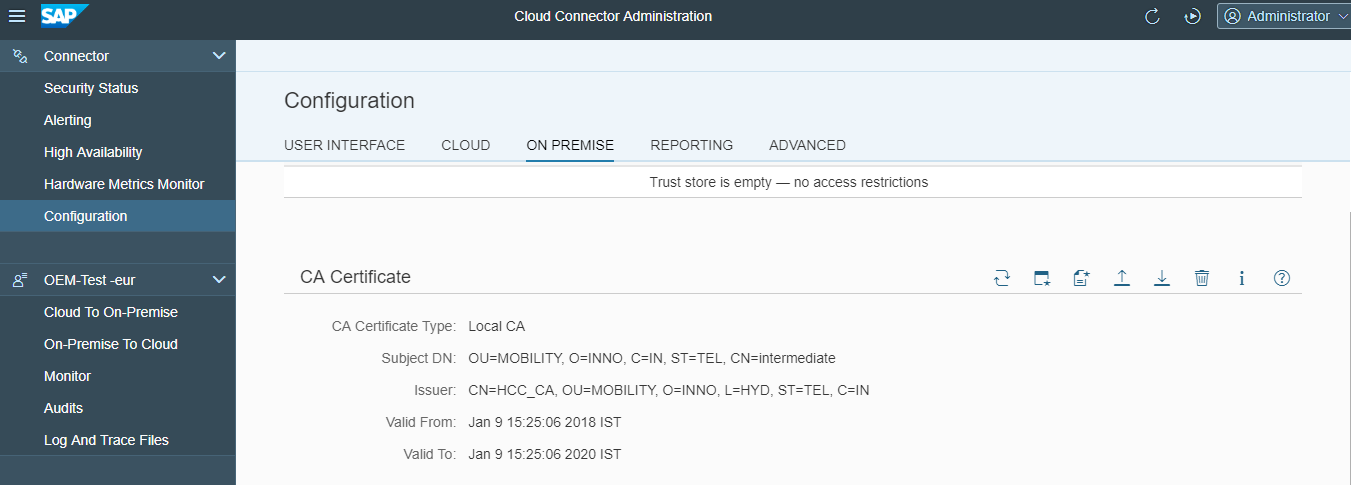

  3. Upload Root CA file to CA Certificate.
  4. Update the Principal Propagation Settings.

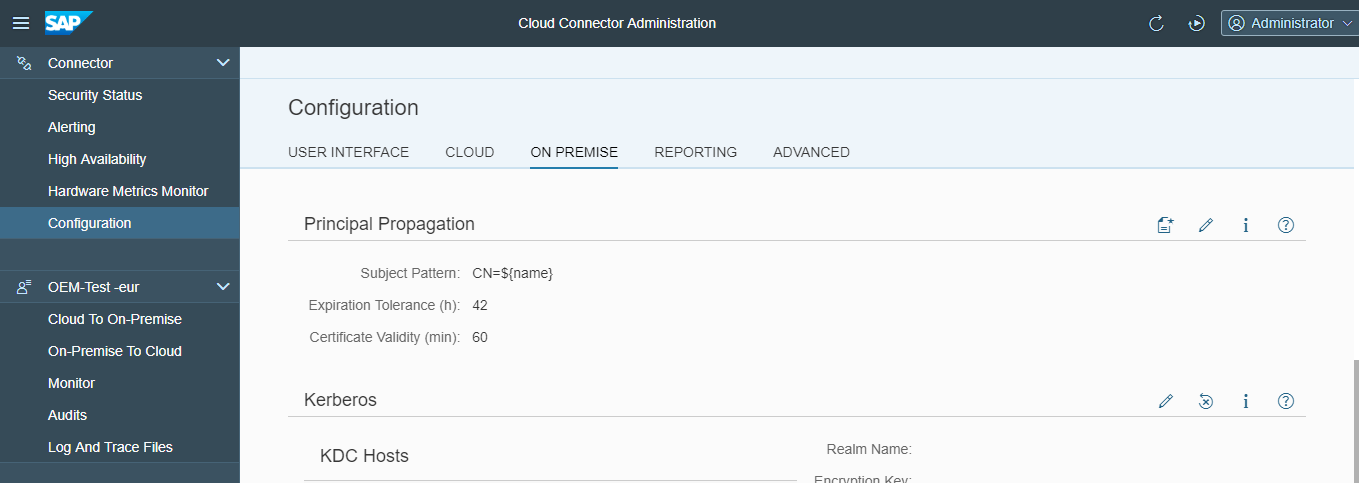

    Figure 2. Principal Propagation Settings
  5. Upload the Backend system server certificate into Trust Store.
