Activate Gateway UI5 Service

Activate gateway UI5 service, once mWorkOrder OData services are activated.

To activate Gateway UI5 Service:
  1. Go to transaction code SICF and search for the service mwo2009_UI5.
  2. Right-click the mWorkOrderui5 service under default_host > sap > bc > ui5_ui5 > INVMWO > mwo2009_UI5 and click Activate Service.

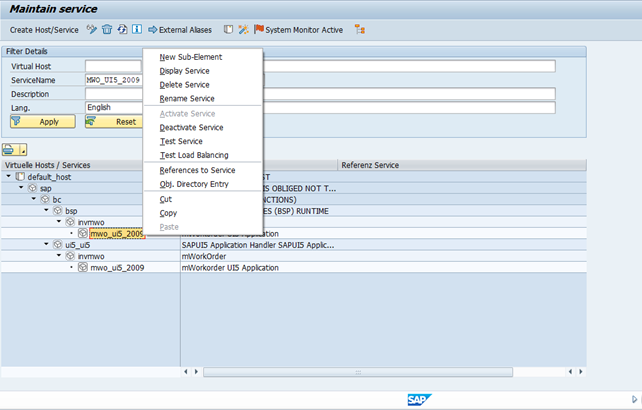

    Figure 1. Activate MWO UI5 Service
  3. Right-click the mWorkOrderui5 service under default_host > sap > bc > bsp > INVMWO > mwo2009_UI5 and click Activate Service.

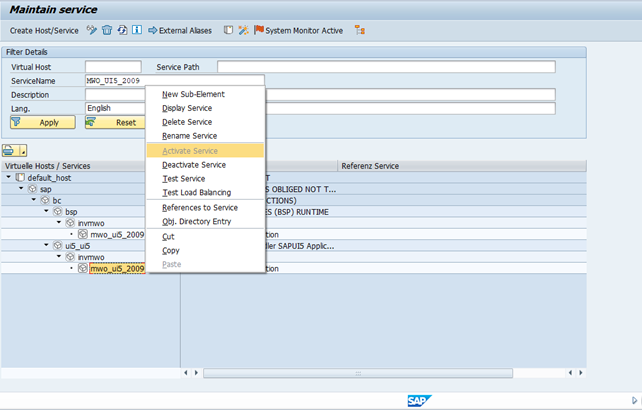

    Figure 2. Activate MWO UI5 Service
  4. Click Yes.
    Access the SAPUI5 web application by replacing the host name,port number and client numberin the following template URLs to match your SAP NetWeaver Gateway instance:
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/mwo2009_UI5/index.html?sap-client=100.
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/ mwo2009_UI5/index.html?sap-client=100&sap-ui-language=EN&sap-ui-appcache=false
