Set color-coding for Work Orders

Use the Color-Coding menu to define color code of the work orders in the work order list screen.

To configure the color code:
  1. Click Color Coding on the left panel.
  2. Click the Add icon next to the search field.
    You can also click the Copy button on the details pane of an existing Filter field to populate the properties in the Create Color Code section.
  3. In the Create Color Code section, enter the following information:
    Table 1. Color Coding configuration attributes
    Field Description
    Module Select the Module where the color code is configured.
    Screen Select the name of the screen where the color code is configured.
    Table Name Select the table from where the data is retrieved.
    Table Description Auto-populated based on the Table Name.
    Field Name Select the standard field in the SAP Table.
    Field Description Populated based on the Field Name.
    Condition Sequence Sequence to execute the condition.
    Condition Condition to apply color code to the field.
    Color Code Hexa decimal code to define the color of the field.
    Condition Syntax Syntax/format to define the Condition.

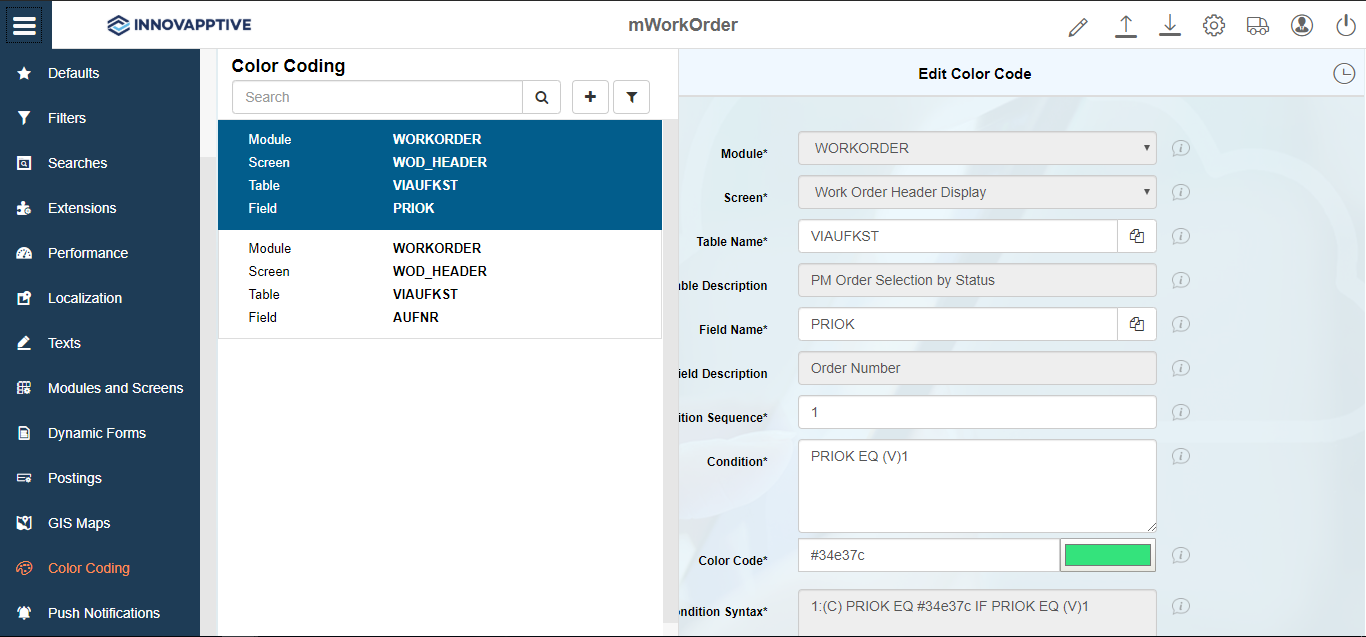

    Figure 1. Color Coding attributes
  4. Click Create.
