Create an Application using LDAP Authentication

Learn how to create an Application using LDAP Authentication

To create an application using LDAP authentication:

  1. Log in to the SMP Admin cockpit.
  2. Under Application, click New.
  3. Enter the following details in the Create Application window
    • Application ID: Enter the ID of the product.
    • Version: Enter the application version.
    • Name: Enter the name of the product.
    • Type: Select Native.
    • Description: Enter the description of the product.
    • Vendor: Enter Innovapptive Inc.
  4. Click Save.
  5. On the Back End tab, enter the primary connection details such as back-end URL and maximum number of connections.

    The following table lists the product Endpoints for Innovapptive products.

    Product OData URL
    mAssetTag http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMAT/MASSETTAG_2_SRV/
    mInventory http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMIM/MINVENTORY_2_SRV/
    mServiceOrder http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMSO/MSERVICEORDER_SRV/
    mShop http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMSC/MSHOP_SRV/
    mWorklist http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMWL/MWORKLIST_3_SRV/
    mWorkOrder http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMWO/MWORKORDER_SRV/
    RACE Dynamic Forms http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVCEC/RACE_SRV/
  6. Select SSO mechanism SSO2.
  7. On the Authentication tab, select the Security Profile.

    Enable the Check Impersonation option.

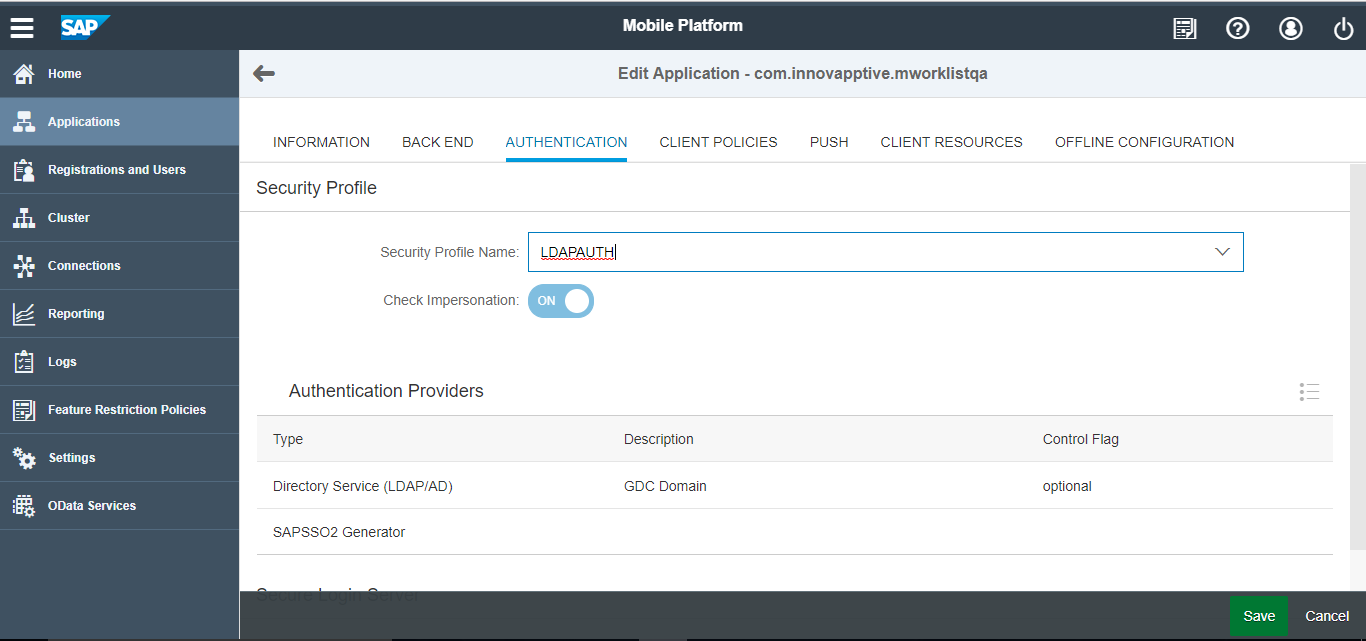

    Figure 1. Security Profile for LDAP application
    Security Profile for LDAP application
  8. Click Save.
