Understand the Usage Decisions Module

The Usage Decision screen is divided into two sections:

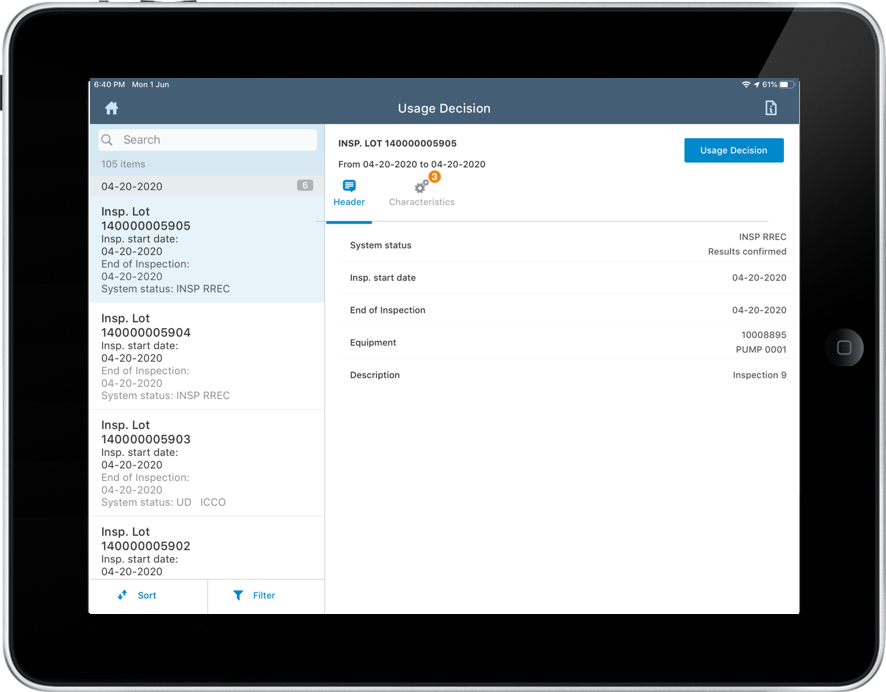

Image of usage decisions screen — Figure 1. Usage Decisions Screen

The left section of the Usage Decision screen includes the following:

List of Inspection Lot with Start Date and End Date, Usage Decision status and Inspection Type.
Search: Search Usage Decision status.
Sort: Sort the inspection lot.
Filter: Filter the inspection lot.

The right section of the Usage Decision screen includes the following tabs:

Header: Check the basic details including system status, inspection duration, and Equipment in the respective fields.
Characteristics: View the inspection lot status (Accepted/Rejected), specifications, quantity, attributes, and notes in the respective fields.
Defects: View the defect details, such as inspection characteristics, problem, and additional notes for an inspection lot.
View Decision: to open a Usage Decision field where you can fill in the decision details, such as the UD code (the corresponding follow-up action gets displayed) and additional notes.
The screen sequence for all these tabs can be configured using RACE.
