Create BgRFC Destination for Outbound Queues

Create a background remote function call (bgRFC) destination for communications in an outbound queue.

To create BgRFC Destination for the outbound queue:

  1. In transaction SPRO, open SAP Reference IMG.
  2. Navigate to SAP NetWeaver, SAP Gateway, OData Channel, Configuration, Connection Settings, SAP NetWeaver Gateway to Consumer, Create RFC Destination for Outbound Queues.
  3. Click Activity.
  4. Click Create.
  5. In the RFC Destination field, enter the name for the RFC destination IWFND_BGRFC_DEST.
  6. In the Connection Type field, enter 3.
  7. In Description 1 field, enter RFC Destination for Outbound Queues.
  8. On the Special Options tab, select the Transfer Protocol as "Classic with BgRFC"/ "Classic Serializer" with “Convert outbound bgRFC to qRFC”.

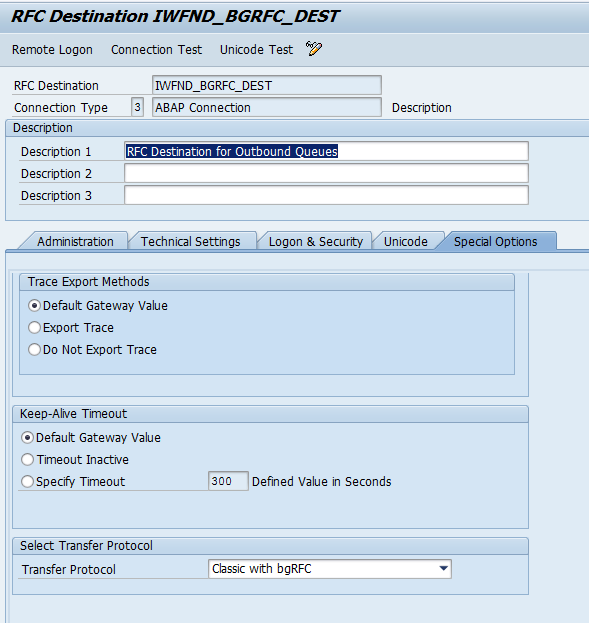

    Figure 1. RFC Destination - Special Options tab

    If you do not find Classic with BgRFC, select the Convert outbound bgRFC to qRFC

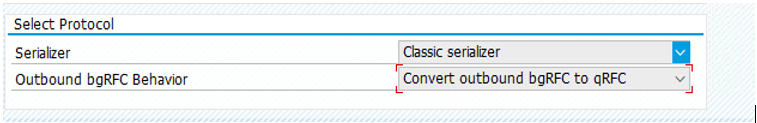

    Figure 2. RFC Destination - Special Options tab
  9. Click Save.
  10. Click Yes on the confirmation message.
  11. Click Connection Test.
