Configure Priority and System Status Color Coding

To configure priority and system status in Work Order and Notification Modules:
  1. In SAP ECC, run T-Code SM30. Table is /INVMWO/PRICOLOU.
  2. Add the following entries:

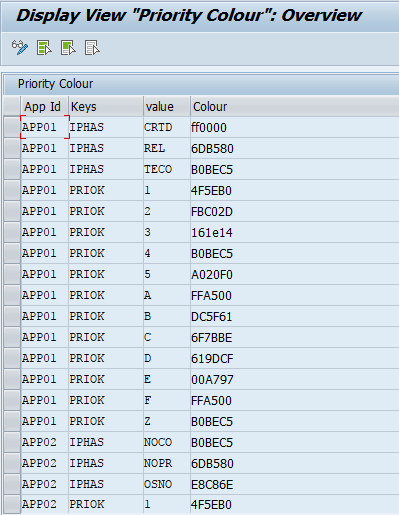

    Figure 1. Priority Color
    Table 1. Priority and System Status configuration attributes
    Field Description
    App ID Unique application ID to identify the module where the priority color coding is configured.
    Key Standard SAP field (Priority/Status) key to configure color coding.
    Value SAP field (Priority/Status) value to configure color coding.
    Colour Indicates the hexa decimal code of the color for Priority/Status.
