Author & Assign Forms for Inspections
This section provides information on how to create forms for inspections and assign it to inspectors.
How to author, schedule and assign forms
Form Author creates forms with multiple questions for asset inspections and publish them. The published forms are assigned to technicians depending on their availability.
Pointers for creating an effective form
Number
Number response type is used to add numbering inputs. For example, readings, measurements, etc. You can configure the response type to see the historical data of unit and range values and enter decimal and negative values when filling tasks that have a number response type.
Number Range
Range option in the Number response type is used to add a number range of a particular action or item. You can enter the reading and provide justification in case the reading is higher/lower than the mentioned limit. For example, temperature range.

Title and Copyright
Copyright and Terms of Use page for Connected Back Office.
Preface
Understand audience, know related documents and products and conventions followed in this document.
What is the mInspections application?
mInspections helps form authors to create forms and helps technicians to inspect equipment, record asset data, and submit scheduled forms with form authors.
Use mInspections to Conduct Inspections
This section provides overview of the mInspections application on how to use mInspections mobile application to conduct inspections and record data.
Author & Assign Forms for Inspections
This section provides information on how to create forms for inspections and assign it to inspectors.
- How to log into Web Application
  Open the application using the URL and login with your User ID and Password.
- Overview of the mInspections Web Application
  mInspections web application is organized into four sections. They are:
- How to author, schedule and assign forms
  Form Author creates forms with multiple questions for asset inspections and publish them. The published forms are assigned to technicians depending on their availability.
  - Pointers for creating an effective form
    - Read Only Field
      Read Only field response type is used in asset maintenance checks or inspections to display important information and prevent accidental changes to critical data. This response type is disabled to edit. For example, Temperature threshold on a boiler unit.
    - Text Answer
      Text Answer questions are a great way to capture answers or responses to open-ended questions, such as comments or descriptions of observations. Capture text responses, either in short answer form or long answer form (paragraph) for more details.
    - Scan
      Scan response type helps to minimize human error when capturing information and save time with accurate and quick data entry. Add questions to your templates and let users scan bar-codes/QR codes using scanners when answering inspection questions.
    - Hyperlink
      Hyperlink response type helps to add links to refer to additional information of an asset.
    - Signature
      Signature response type is used to add the signature of the responsible person who is performing certain inspections or tasks. For example, a technician or an operator.
    - Slider
      Slider response type is used to add values range. For example, readings range, price range, measurement range, etc. You can configure the response type to see the historical data of range values.
    - Date Range
      Date Range response type is used to add date range of particular action or item. For example, inspection date range.
    - Instructions
      Instructions response type is used to provide instructions to the technicians or operators to ensure that equipment is properly maintained, and operated, while also promoting safety and preventing damage to the equipment. For example, Safety instructions may be provided to ensure that inspections are performed safely and that personnel are protected from hazards.
    - Number
      Number response type is used to add numbering inputs. For example, readings, measurements, etc. You can configure the response type to see the historical data of unit and range values and enter decimal and negative values when filling tasks that have a number response type.
      - Number with the Unit of Measurement
        Unit option in Number response type is used to add the number range of a particular action item and notify the supervisor depending on the range of the measurement. For example, temperature range.
      - Number Range
        Range option in the Number response type is used to add a number range of a particular action or item. You can enter the reading and provide justification in case the reading is higher/lower than the mentioned limit. For example, temperature range.
      - Popup Message based on Number Range
        Popup Message based on Number Range option in Number response type is used to add a number range of a particular action or item. You can enter the reading and provide justification in case the reading is higher/lower than the mentioned limit. For example, reading range.
    - Date and Time
      Date and Time response type is used to add date and time. For example, inspection or maintenance date and time.
    - Checkbox
      Checkbox response type is used to add list of items. For example, checklist, list of tasks or actions, etc.
    - Photo
      Photo response type is used to add photos for better visibility of an equipment with proofs.
    - Geo Location
      Geo Location response type is used to add equipment or asset location.
    - Multiple Choice
      Multiple Choice response type presents predetermined options, allows you to select a response without the need for open-ended input.
    - Global Picklist
      Global Picklist response type presents drop-down options, allows you to select a response from the drop-down.
    - User
      User response type is used to display the current user when a user adds the form to the work order in the mWorkOrder mobile application.
    - Conditional Logic
      Conditional logic changes how your online form behaves based on specific user actions. It allows you to dynamically customize the form experience based on your respondents’ answers.
  - Author forms and publish
    Create forms with pages, sections, and questions within sections, and publish them. Technicians use the published forms while conducting inspections to fill data and submit them based on the use case using the mobile application.
  - Schedule forms and assign them to technicians
    You can schedule inspections at header or question level by dates or by frequency like daily, weekly, bi-weekly, monthly and assign them to technicians based on their availability during shifts and slots. Only the published rounds can be scheduled and assigned to technicians.
  - Create inspection forms from templates
- How to view Forms status
  Form Authors can closely monitor progress of inspections by viewing the status of scheduled forms.
- How to view forms and form details
  You can view forms list and form details from the Forms tab in the Scheduler section
- How to view issues and actions
  View all issues and actions in the Observations section. These issues and actions are created by the Technicians in the mInspections application while doing inspections.
- How to create ERP Notification against an asset
  Create a notification for equipment or functional location while conducting inspections. The Notification triggers in the backend SAP system with a notification number.
- How to archive, restore, and delete forms
  As a Form Author, you can archive inactive forms and restore them when needed. Or you can permanently delete them when they are no longer required for asset maintenance.
- How to search and filter forms, inspections and templates
  Search and filters are powerful options for finding information quickly, easily, and accurately. They help you to get the information you need quickly and effortlessly.
How to add Master Data
Use the Master Configuration module to add master data. As an admin, you can create master data like plants, assets, locations, units of measurements, and global response set data that can be used to create forms and rounds.
How to onboard Tenants/Super Admins
Use the Tenant Management module to create tenant or super admin roles for onboarded customers/user and provide access to the applications and modules.
How to onboard Users and Assign Roles
Use the User Management module to create roles and so on, create users, and assign relevant roles to the users.

Number Range

Range option in the Number response type is used to add a number range of a particular action or item. You can enter the reading and provide justification in case the reading is higher/lower than the mentioned limit. For example, temperature range.

To add range value:

Enter a question as Note down the readings.
Select the Number value from the Responses drop-down.
Select the Required check box if the value is required.
Select the relevant Unit like Celsius (^oC) for the temperature. For more information, see Number with the Unit of Measurement.
Click the Range link and add range values for the selected Unit.
In the Range window, select Lower Limit and Upper Limit values.

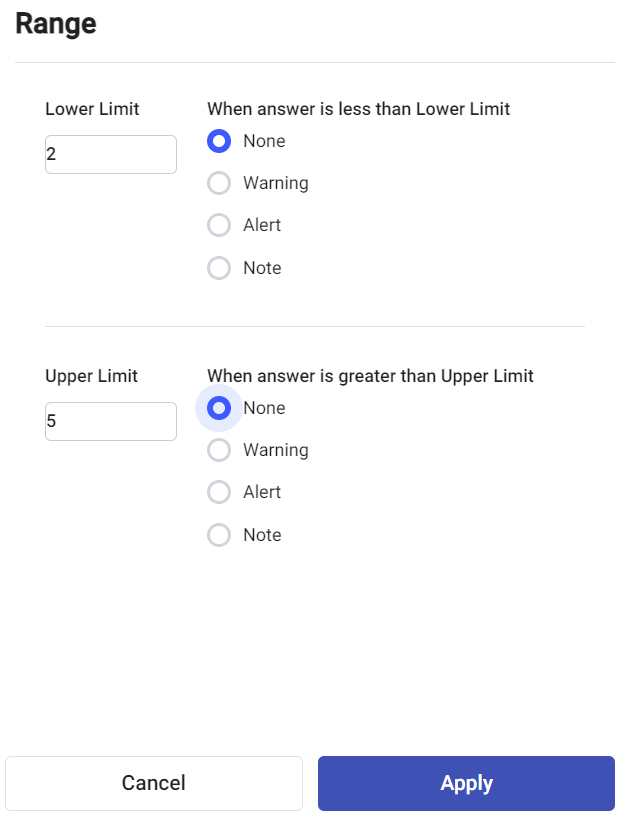

Figure 1. Number Range
Click Apply.
