Title and Copyright
Copyright and Terms of Use for Install Guide for mInventory, a Mobile Inventory Management Solution of Connected Workforce Platform^TM.
Preface
Understand audience, know related documents and products and conventions followed in this document.
Install Supporting Systems
Install mInventory
- Install Add Ons
  Add-On/Transports: Install the add-on or transports for the current release that is provided by Innovapptive representative.
- Install RACE™ Add-ons in SAP® S/4HANA or Hub Systems (ECC & Gateway)
- Install mInventory Add Ons in SAP S/4HANA or Hub Systems (ECC & Gateway)
  - Verify SAP® ECC RACE™ and MIM Add-On
  - Verify SAP® GW RACE™ and MIM Add-On
  - Activate RACE™ and mInventory OData Services
    Once add-on and support packs are installed, activate RACE™ and mInventory OData Services.
  - Activate UI5 Service
    Activate UI5 Service once you have activated RACE™ and mInventory OData Services.
  - Activate FIORI Service
    Activate FIORI service after you have activated UI5 service.
Check Schema Change Indicator
After importing support packs into the systems, perform the following steps to check the Schema Change Indicator.
SAP Gateway cache clean up
Clean up the SAP Gateway Cache after importing support packs into the systems.
Configure SAP Gateway for mInventory
SAP Material Management (MM) users can use mInventory to do the following:
Configure RACE™ for mInventory
Innovapptive’s Connected Workforce Platform™ uses built-in integrations to connect your SAP®, IBM Maximo, and other back-office systems with mobile applications. This helps organizations bridge communication and information gaps between executive teams, field technicians, plant operators, warehouse operators, maintenance engineers, and back-office staff. Connect data points across cloud and on-premise networks to quickly and easily.
SAP transactions and tables for mInventory
The following table provides the list of key SAP transactions and tables for mInventory.
Implement BADIs
mInventory uses SAP oDATA based on RESTful design. mInventory performs service calls to read and post data from the SAP Business backend system. These service calls invoke remote enabled function modules in the backend systems to either get or post data depending on the direction of the call. Like Standard SAP code, Innovapptive Add-On code objects cannot be modified in customer systems.
Generate Secondary Indices
To improve the application performance, for tables containing large amounts of data, generate secondary indices for key tables relevant for the product.
Download App and Install
Download the latest version of mInventory app from Apple App Store, Google Play or the Microsoft Store and install it on your devices.

Activate UI5 Service

Activate UI5 Service once you have activated RACE™ and mInventory OData Services.

To activate UI5 Service:

Go to the transaction code SICF and navigate to /default_host/sap/bc/ui5_ui5/ invcec/race2208sp02ui5.
Right-click RACE 2208 SP02 UI5 and click Activate Service.

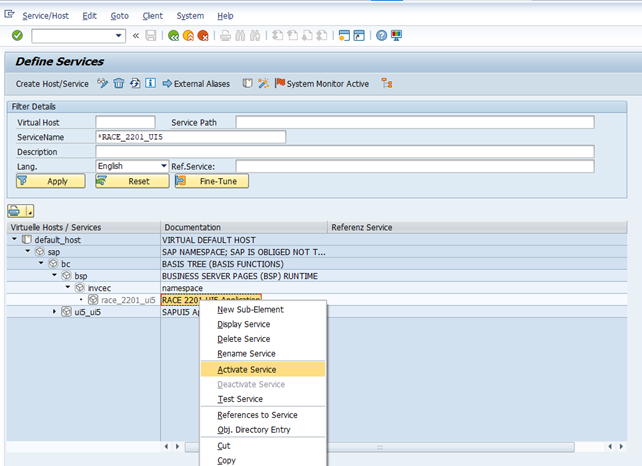

Figure 1. Activate RACE BSP Service
Click Yes.
Access the SAPUI5 web application by replacing the host name, port number and client number in the following template’s URLs to match your SAP NetWeaver Gateway instance:
- http://<hostname>:<port_number>/sap/bc/ui5_ui5/invcec/race2208sp02ui5/index.html?sap-client=100.
Note:
To activate the mInventory UI5 service, follow the above steps (1-3).
