Activate Gateway FIORI Service

Activate gateway FIORI service, once gateway UI5 service is activated.

To activate the Gateway FIORI Service:
  1. Go to transaction code SICF and search for the service mwo2003_fiori.
  2. Right-click the mWorkOrderui5 service under default_host > sap >bc > ui5_ui5 > INVMWO > mwo2003_fiori and click Activate Service.

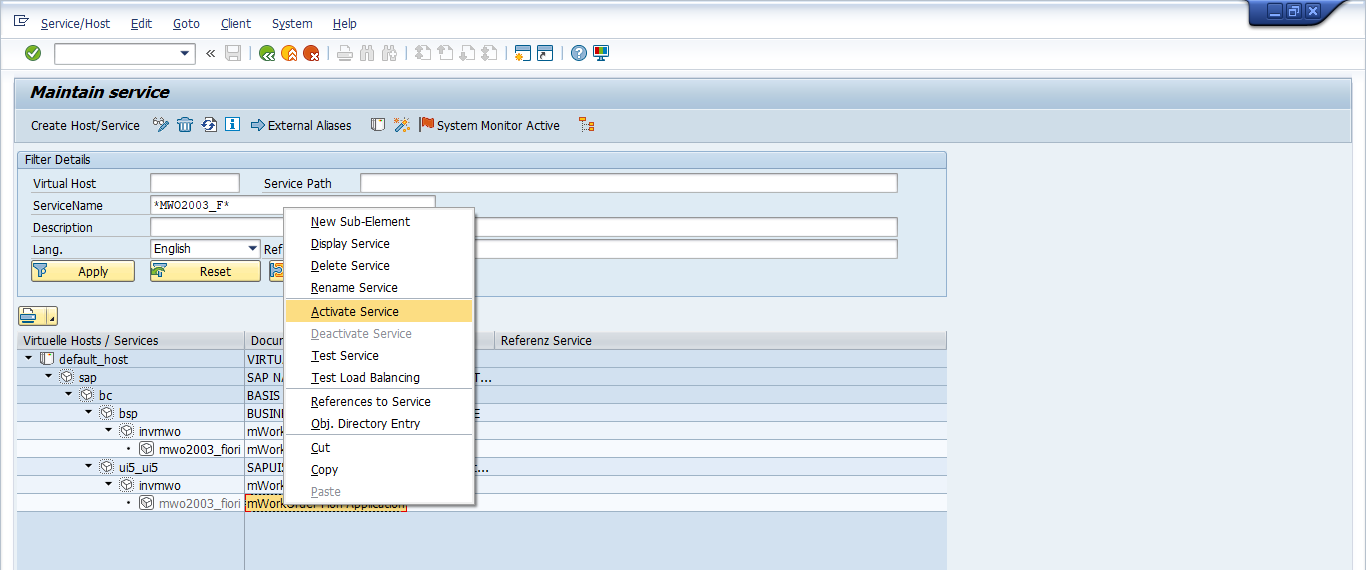

    Figure 1. Activate MWO FIORI Service
    Figure 2.
  3. Right-click the mWorkOrderui5 service under default_host > sap > bc > bsp > INVMWO > mwo2003_fiori and click Activate Service
    A message prompts you to activate the service.
  4. Click Yes.

    Access the SAPUI5 web application by replacing the host name,port number and client numberin the following template URLs to match your SAP NetWeaver Gateway instance:

    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/mwo2003_fiori/index.html?sap-client=100.
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/mwo2003_fiori /index.html?sap-client=100&sap-ui-language=EN&sap-ui-appcache=false.
