Activate Gateway UI5 Service

Activate gateway UI5 service, once mWorkOrder OData services are activated.

To activate Gateway UI5 Service:
  1. Go to transaction code SICF and search for the service mwo2003_UI5.
  2. Right-click the mWorkOrderui5 service under default_host > sap > bc > ui5_ui5 > INVMWO > mwo2003_UI5 and click Activate Service.

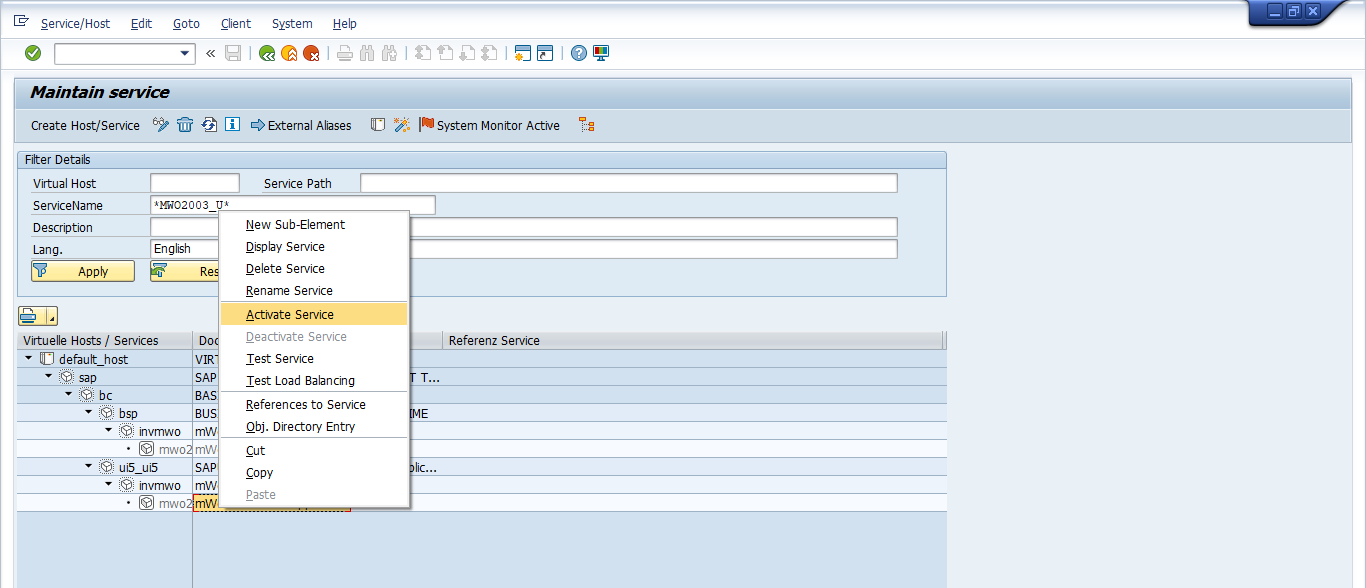

    Figure 1. Activate MWO UI5 Service
  3. Right-click the mWorkOrderui5 service under default_host > sap > bc > bsp > INVMWO > mwo2003_UI5 and click Activate Service.
    A message prompts you to activate the service.
  4. Click Yes.
    Access the SAPUI5 web application by replacing the host name,port number and client numberin the following template URLs to match your SAP NetWeaver Gateway instance:
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/mwo2003_UI5/index.html?sap-client=100.
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/ mwo2003_UI5/index.html?sap-client=100&sap-ui-language=EN&sap-ui-appcache=false
