Generate and Print Barcode Labels

Use the Label Printing module to generate and print barcode labels for Outbound Delivery-Handling Unit, Purchase Order/Stock Transport Order, Bin and Return Delivery.

You can:
  • Enter the values that need to be displayed on the barcode label such as PO#, Material#, Batch#, and so on.
  • Select a field for which the barcode label should be generated.
  • Configure these parameters for a label using RACE:
    • Barcode Type
    • Elements of Barcodes
    • No. of Labels
  • Configure screen and fields using RACE to print custom labels like Material Label. See RACE configurations for mInventory Guide.

To print barcode labels:

  1. On the Home screen, tap Label Printing.
  2. Select the Label Type:
    Table 1. Label Types
    Name Description
    OD-HU Label Printing Outbound Delivery-Handling Unit
    PO/STO Label Printing Purchase Order/Stock Transport Order
    Bin Label Printing Bin Label Printing
    RO Label Printing Return Delivery

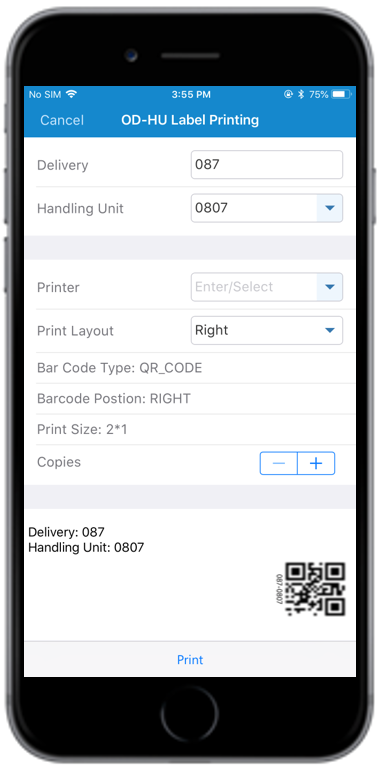

    Figure 1. Label Printing Details
    Label Printing Details
  3. Enter this information for the label type:
    • OD-HU Label Printing
      • Delivery: Tap to enter the delivery number.
      • Material: Tap to enter or tap the drop-down to select the material.
      • Material Desc: This value is auto-populated based on Material.
      • Handling Unit: This value is auto-populated if the delivery number is linked with Handling unit.
    • PO/STO Label Printings
      • Purchasing Document Number
      • Batch Number
      • Item Number
      • Material Number
    • Bin Label Printing: Storage Type.
    • RO Label Printing: Delivery.

    Based on these values, the layout preview details appears in tabular format.

  4. Enter these print parameters:
    • Print Layout: Tap the drop-down to select the print layout, such as Top, Right, Left, and Bottom.
    • Bar Code Type: This field is auto-populated and grayed out.
    • Barcode Position: This field is auto-populated and grayed out.
    • Print Size: A standard print size, as per RACE configuration, is displayed. This field is auto-populated and grayed out.
    • Copies: Tap the icon to modify the number of copies to print.
  5. Tap Print.
    Double tap on the barcode preview to view the label in full screen. You can also zoom-in and zoom-out.
