Create security profile for LDAP Authentication

To create a security profile for LDAP Authentication:

  1. Log in to SMP Admin Cockpit.
  2. Navigate to Settings Tab, Security Profiles and click New.
  3. Enter the Security Profile Name, for example, LDAPAUTH.

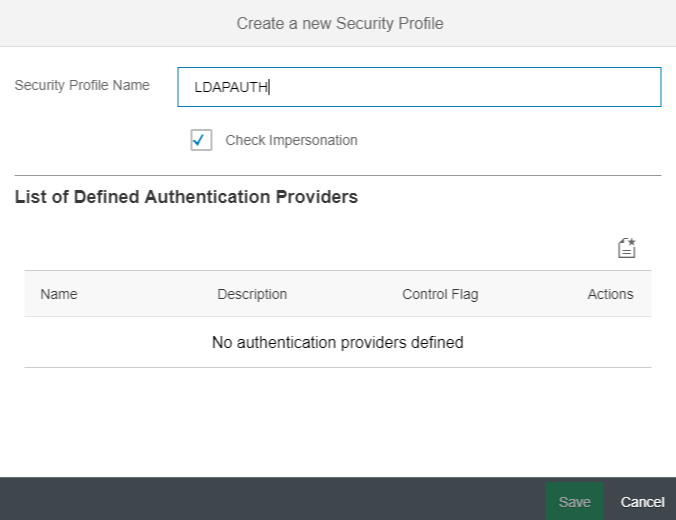

    Figure 1. LDAP Security Profile
    LDAP Security Profile
  4. Click Add and select Directory Service (LDAP/AD) and enter the following details.
    Property Description
    Server Type Type of LDAP server.
    LDAP URL URL to connect to the LDAP server.
    Security Protocol Protocol to use when connecting to the LDAP server.
    Bind DN User Distinguished Name (DN) to bind when building the initial LDAP connection. This user needs read permissions on all user records.
    Bind Password Password for Bind DN to authenticate users.
    Authentication Filter Filter to find the username.
    Role Search Base Search to retrieve lists of roles. If this is not configured, the Default Search Base is used.
    Role Filter The role search filter, when combined with the role search base and role scope, displays the complete list of roles within LDAP server.
    Default Search Base LDAP search base that is used if no other search base is defined for authentication, roles, attribution, and self-registration.
  5. Click Save.
  6. Add the LDAP Configurations, as shown below.

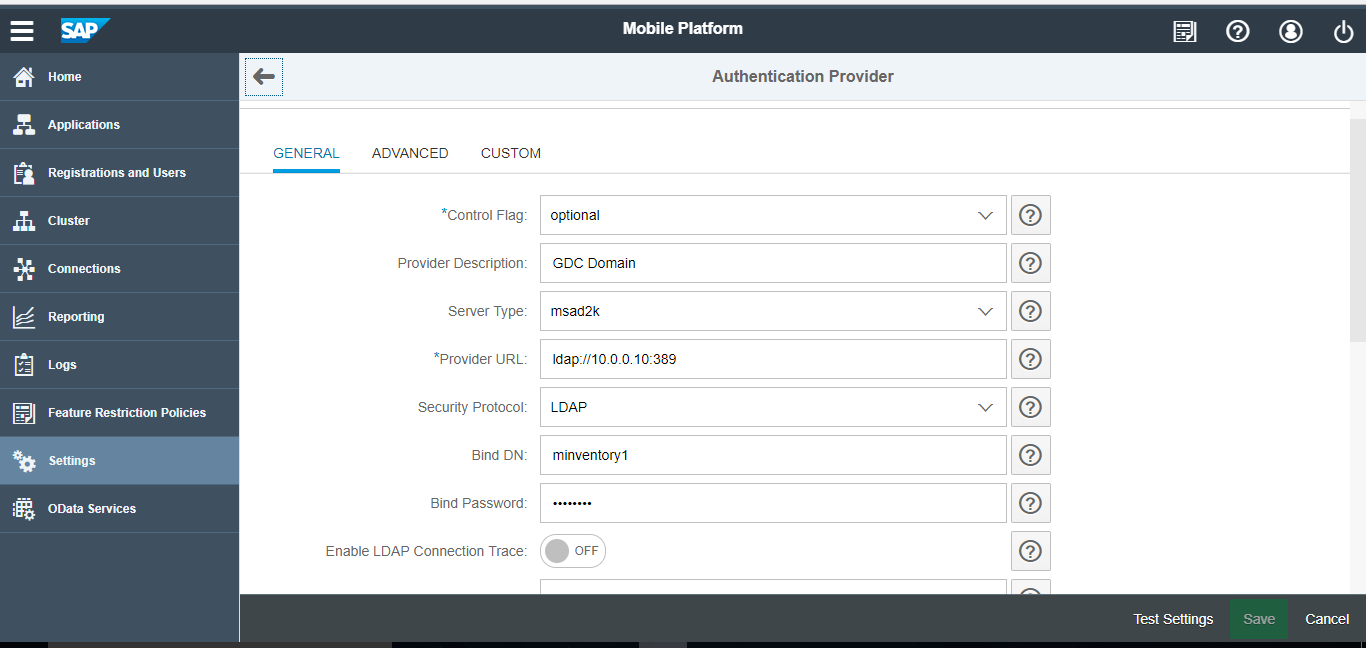

    Figure 2. LDAP Configurations
    LDAP Configuurations

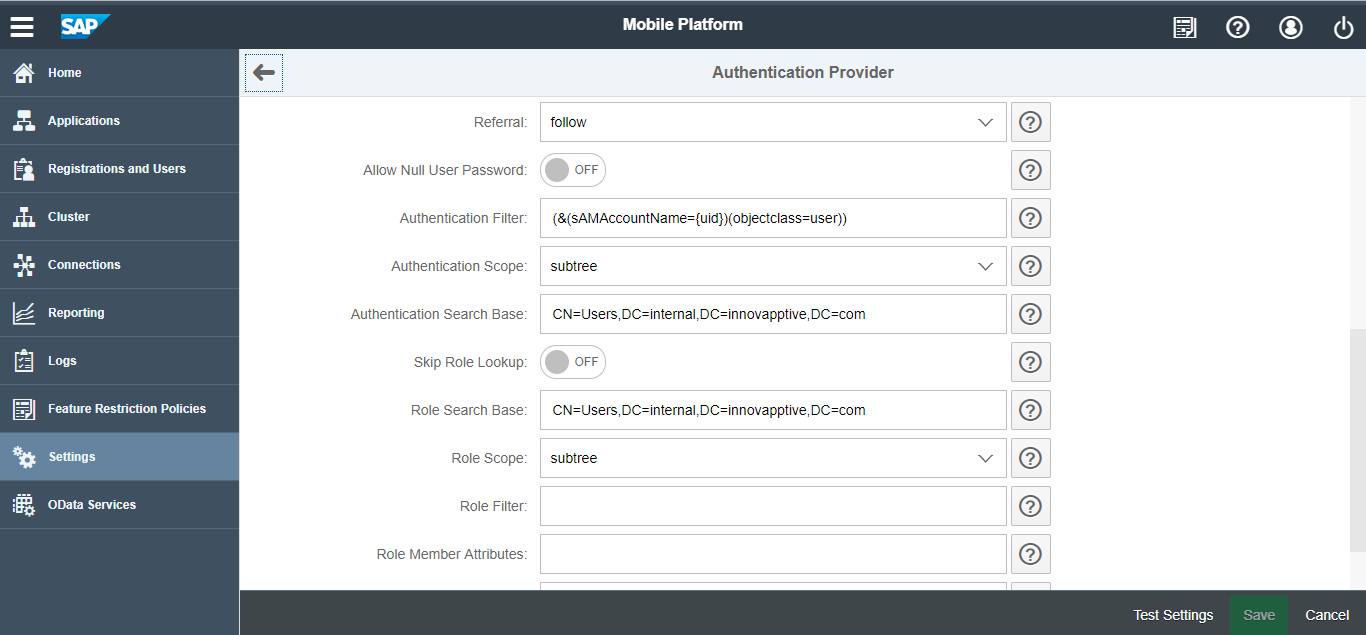

    Figure 3. LDAP Configuurations
    LDAP Configuurations
  7. Click Save.

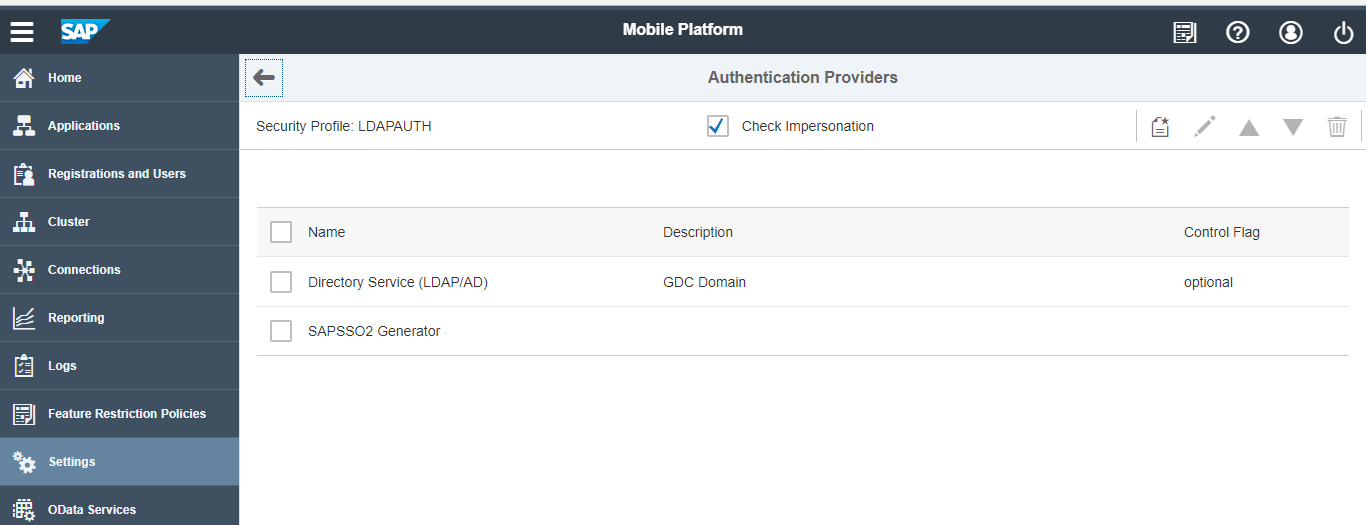

  8. Click ADD and select Authentication Provider as SAPSSO2 Generator.
  9. Add SSO2 Generator details, as shown below.
    Figure 4. SSO2 Generator details
    SSO2 Generator details
    Figure 5. SSO2 Generator details
    SSO2 Generator details
  10. Click Save.
