Install supporting systems

Install the following supporting systems as part of the preinstallation requirements.

Table 1. Prerequisites
Software
  • SMP 3.0 SP11 PL06 and above (SAP Mobile Platform)
  • BTPms (Business Technology Platform Mobile service)
  • SAP Cloud Connector latest version
  • SAP NetWeaver Gateway 7.4 and above with SAP_GWFND 740 component (SP 13 and above)
  • Reverse proxy (SAP Web Dispatcher, Apache, Junos Pulse, NetScaler proxy servers are recommended. Others need to be evaluated)
  • RACE 2208—SAP_UI 740 SP13 and above or SAP_UI 750 SP01 and above or provide access to online UI5 libraries of version 1.71
  • SPAM Version 69 and above (only for Add-Ons)
SAP Business Suite
  • ECC 6.0 EHP 5 with SAP_BASIS 702 and above (recommended)
  • Lower versions are compatible (requires evaluation)
  • SAP S/4HANA Business Suite 1709, 1809, 1909 and 2021 (versions requires evaluation)
Compatible Security Authentication Mechanism
  • Basic authentication
  • SSO2 between SMP and NetWeaver Gateway Active Directory SSO
  • SAML 2.0 Authentication
Access
  • SAP Basis System Admin with access to 000 clients in HUB (Gateway and ECC systems) / EMBEDDED system, based on the type.
  • Access to SAP File OS directory usr/sap/trans/EPS/in to upload PAT files.
Assumptions Access to the RACE™ portal can be completed after the RACE™ admin user credentials setup is completed.

Install the supporting systems in the order defined in the flow.

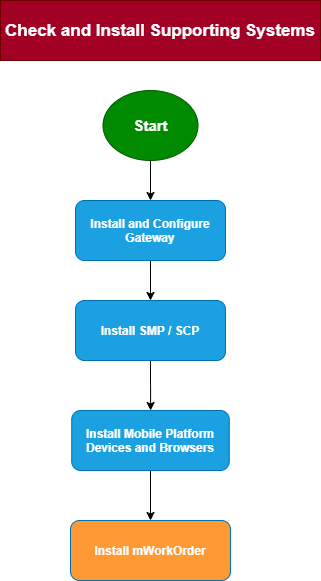

Figure 1. Install Systems
