Record Movement of Shipment in RLM

You can record the Shipment details from an onshore warehouse to offshore platform and post the Shipment receipt in the RLM.

The Shipment has following status:
  • In Progress: If the RLM does not receive all the deliveries or containers from the shipment then the Shipment status displays as In-Progress.
  • Pending: If the RLM did not receive any delivery or container from the shipment then the Shipment status displays as Pending.

To post the Shipment receipt:

  1. In the Home screen, tap Remote Logistics Management.
  2. Tap RLM Shipment Receipt.

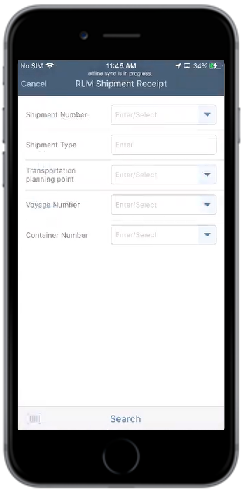

    Figure 1. Spiment Search
  3. Enter search criterion.
  4. Tap Search.

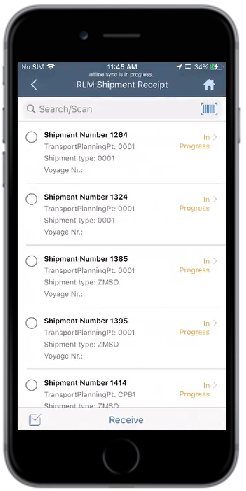

    Figure 2. Select Shipment
  5. Select individual or multiple shipments.
  6. Tap Receive.

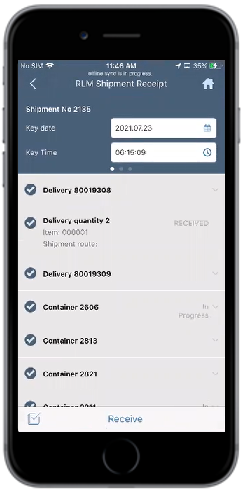

    Figure 3. Select Containers or Deliveries
  7. In the Shipment Details screen, select the Containers or Deliveries which are not yet received.
    Note: When you select a Container all the deliveries in the container are automatically selected. If you don’t want to receive a particular delivery from the Container, deselect it and post the deliveries.
  8. Tap Receive.
    A message appears asking whether you want to post the shipment receipt.
  9. Tap Confirm.
    A message appears confirming that the Goods receipt <number> posted for delivery <number>.
  10. Tap OK.
