Create an Application using LDAP Authentication

Application ID: Enter the ID of the product.
Version: Enter the application version.
Name: Enter the name of the product.
Type: Select Native .
Description: Enter the description of the product.
Vendor: Enter Innovapptive Inc.

Learn how to create an Application using LDAP Authentication

To create an application using LDAP authentication:

On the Back End tab, enter the primary connection details such as back-end URL and maximum number of connections.

The following table lists the product Endpoints for Innovapptive products.


Product	OData URL
mAssetTag	http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMAT/MASSETTAG_2_SRV/
mInventory	http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMIM/MINVENTORY_2_SRV/
mServiceOrder	http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMSO/MSERVICEORDER_SRV/
mShop	http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMSC/MSHOP_SRV/
mWorklist	http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMWL/MWORKLIST_3_SRV/
mWorkOrder	http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVMWO/MWORKORDER_SRV/
RACE Dynamic Forms	http(s)://<gw_system_host>:<http(s)_port>/sap/opu/odata/INVCEC/RACE_SRV/

Select SSO mechanism SSO2.
On the Authentication tab, select the Security Profile.
Enable the Check Impersonation option.

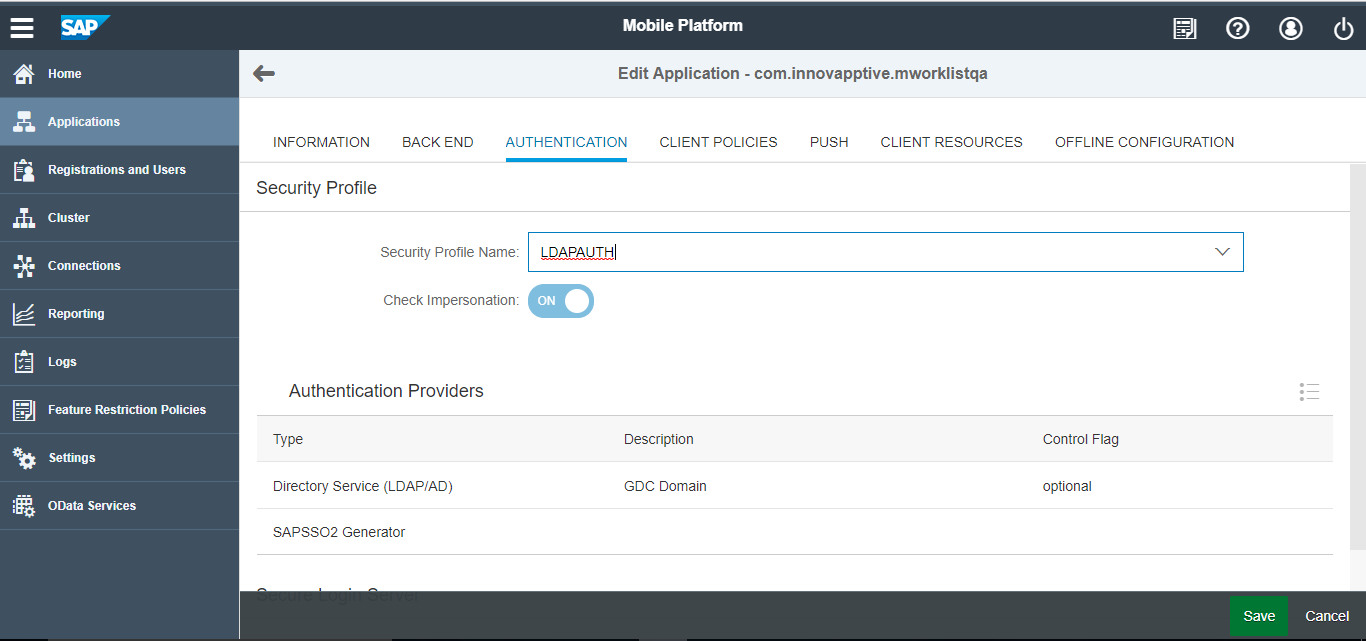

Figure 1. Security Profile for LDAP application
Add the LDAP Configurations, as shown below.

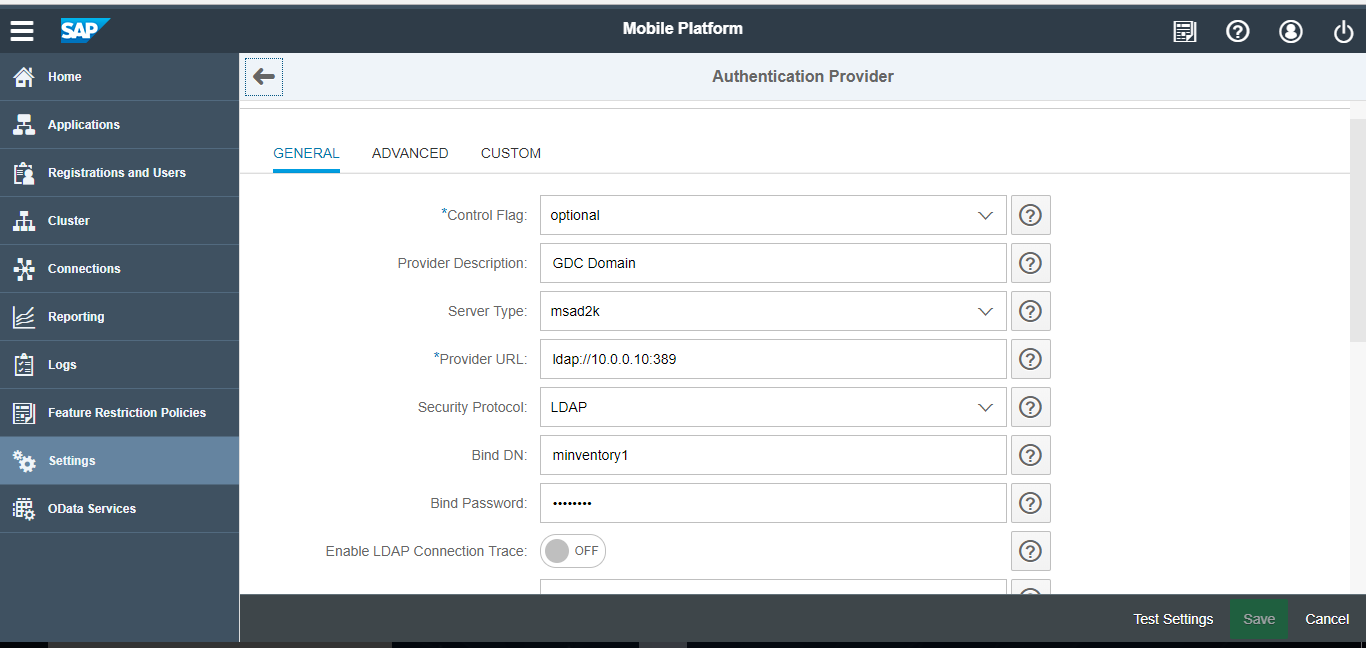

Figure 2. LDAP Configurations

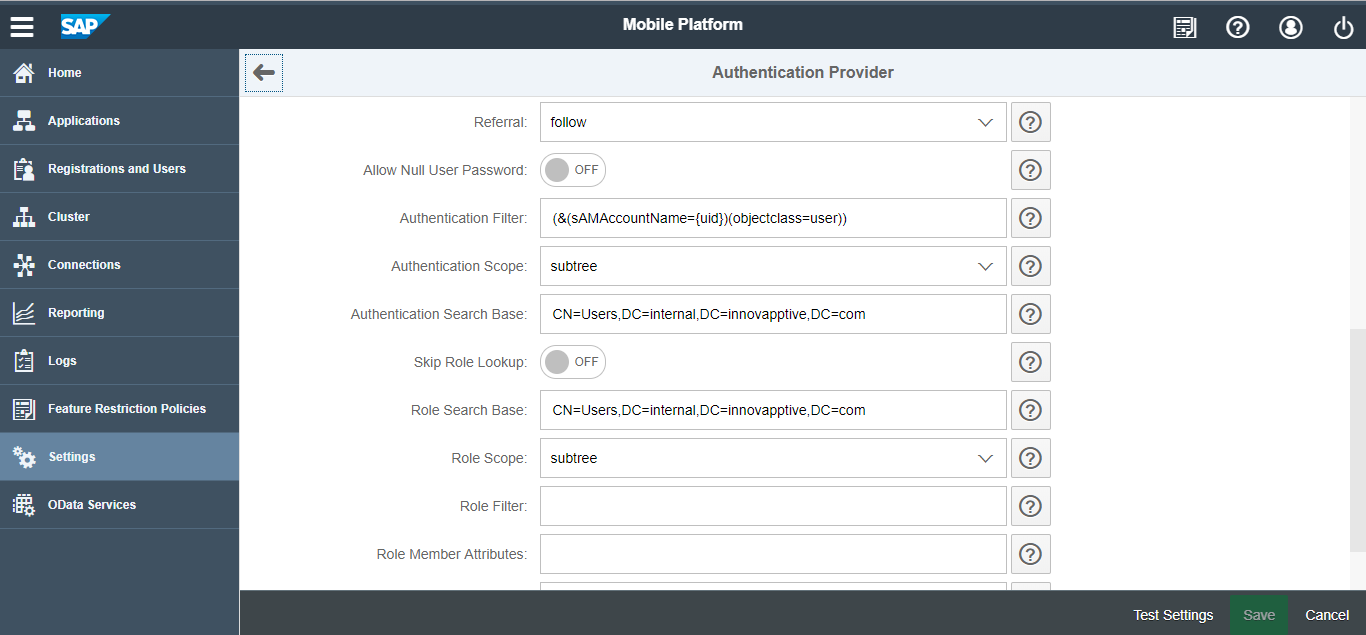

Figure 3. LDAP Configuurations
Add SSO2 Generator details, as shown below.

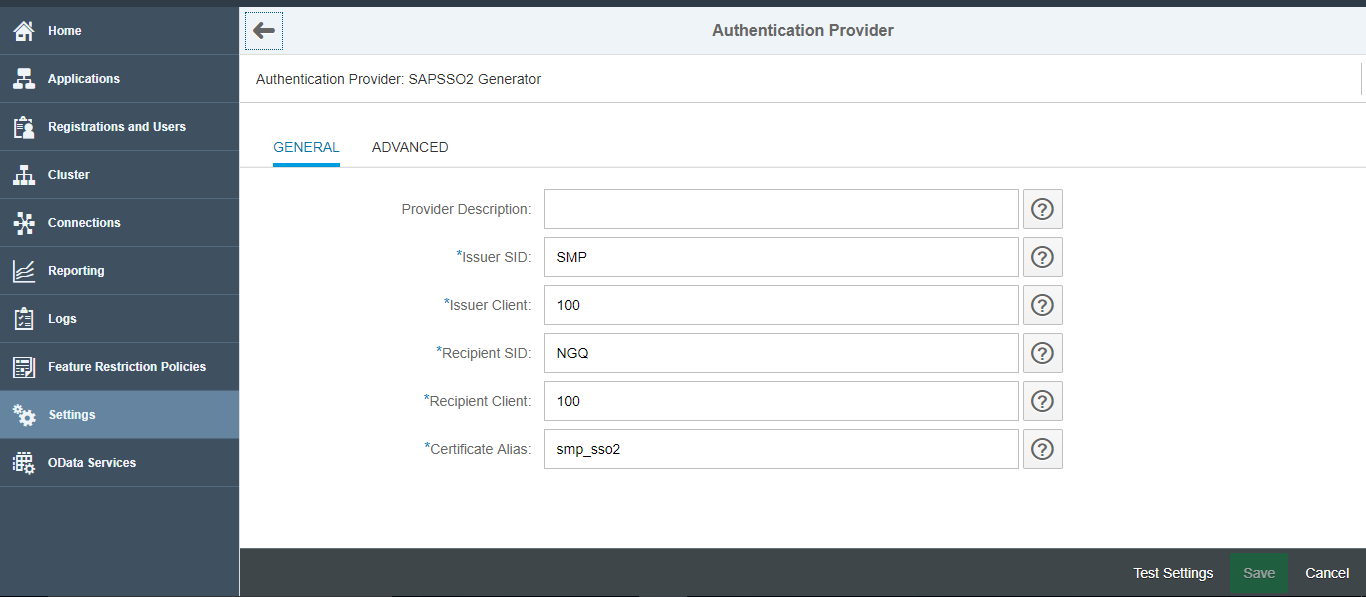

Figure 4. SSO2 Generator details

Figure 5. SSO2 Generator details
Click Save.
