Configure form fields to show possible values in line with the field

Configure the form field (segmented control field) to show the available/ possible values on the screen so that the mobile user can tap on the value.

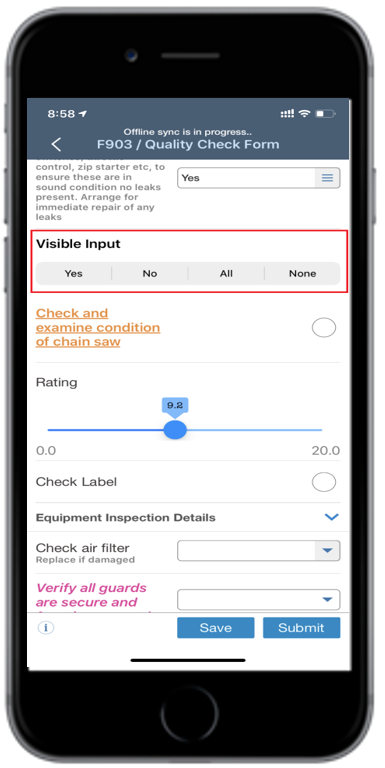

A segmented control field is similar to a drop down field but shows the available options on the screen instead of the list view. It is displayed in the mobile application as:

To configure visible input field:

1. Click Dynamic Forms on the left panel.
2. Click on the form.
3. Click on the form field.
4. In the Edit Form Fields section, select the Field Type as VI (Visible Input).
5. Click in the DD Values field to add possible values in the Add Dropdown Values window.
6. Click Save.
