SCP Configurations before Installing Innovapptive Products
This section guides you with the required SCP Configurations before installing Innovapptive Mobile Products.
Configur SCP for Deploying Innovapptive Products
SAP Cloud Platform (SCP) configuration process consists of tasks like validating access to SCP, enabling mobile services, configuring cloud connector and so on.
Establish trust between SCP, Cloud Connector and SAP Gateway
Establish trust between SCP, Cloud Connector and SAP system using self-signed certificates.
Configure Cloud Connector

Title and Copyright
Copyright and Terms of Use for the Pre-Install or Pre-Upgrade Configurations Guide for mAssetTag, mWorkOrder, mInventory, mServiceOrder, mWorkList and all other solutions of Connected Workforce Platform^TM .
Preface
Understand audience and conventions followed in this document.
Pre-Install or Pre-Upgrade Configurations for Innovapptive Products
This guide contains instructions for pre-install or pre-upgrade configurations for both SCP and SMP environments. Depending on the platform you are on, choose your configuration path.
SCP Configurations before Installing Innovapptive Products
This section guides you with the required SCP Configurations before installing Innovapptive Mobile Products.
- Configure SAP NetWeaver Gateway—BgRFC
- Configure NetWeaver Gateway
  Configure SAP NetWeaver Gateway to define how some settings must work with your existing SAP ECC Business Suite system.
- Configure ECC
  If you have HUB architecture, you must configure ECC.
- Configure Access for Deploying Innovapptive Products
  Understand the roles and access requirements for deploying Innovapptive mobile products.
- Configur SCP for Deploying Innovapptive Products
  SAP Cloud Platform (SCP) configuration process consists of tasks like validating access to SCP, enabling mobile services, configuring cloud connector and so on.
  - All About SCP Data Center
    Access your SCP account based on the region where you are located.
  - Validate access to SCP
    Validate the SCP Access and add members to the team for Administration and Development activities.
  - Enable Mobile Services
    Enable mobile services, if you are logging into SCP for the first time.
  - Install and Configure Cloud Connector
    Cloud Connector connects on-demand applications in SAP Cloud Platform and on-premise systems and lets you the control cloud applications resources. This helps you benefit from existing assets without exposing the entire internal landscape.
  - Establish trust between SCP, Cloud Connector and SAP Gateway
    Establish trust between SCP, Cloud Connector and SAP system using self-signed certificates.
    - Create Self-Signed Root CA for Cloud Connector
      You can use an existing CA to create a self-signed CA. If you are using your own CA, create the certificate of that CA.
    - Create an Intermediate Certificate for Cloud Connector
    - Import Certificate into the Cloud Connector Machine
      Import HCC_CA.crt --- HCC Root CA and intermediate .p12—Intermediate CA with the “KEYCERTSIGN” in the property certificates into the HCC computer.
    - Configure Cloud Connector
    - Configure Access Control
    - Configure SAP system to support principal propagation
    - Create HTTPS Service in SMICM
    - Provide Logon Data
    - Mapping certificates to users
      Map the certificates to respective users using Transaction code: EXTID_DN.
    - Export SAP System Certificates to Cloud Connector
    - Import Cloud Connector Root and Intermediate Certificates to Gateway Trust Store
SMP Configurations before Installing Innovapptive Products
This section guides you with the required SMP Configurations before installing Innovapptive Mobile Products.

Configure Cloud Connector

To configure the Cloud Connector:

Go to Configuration menu, On Premise tab.
Upload the Intermediate Certificate to Cloud Connector.

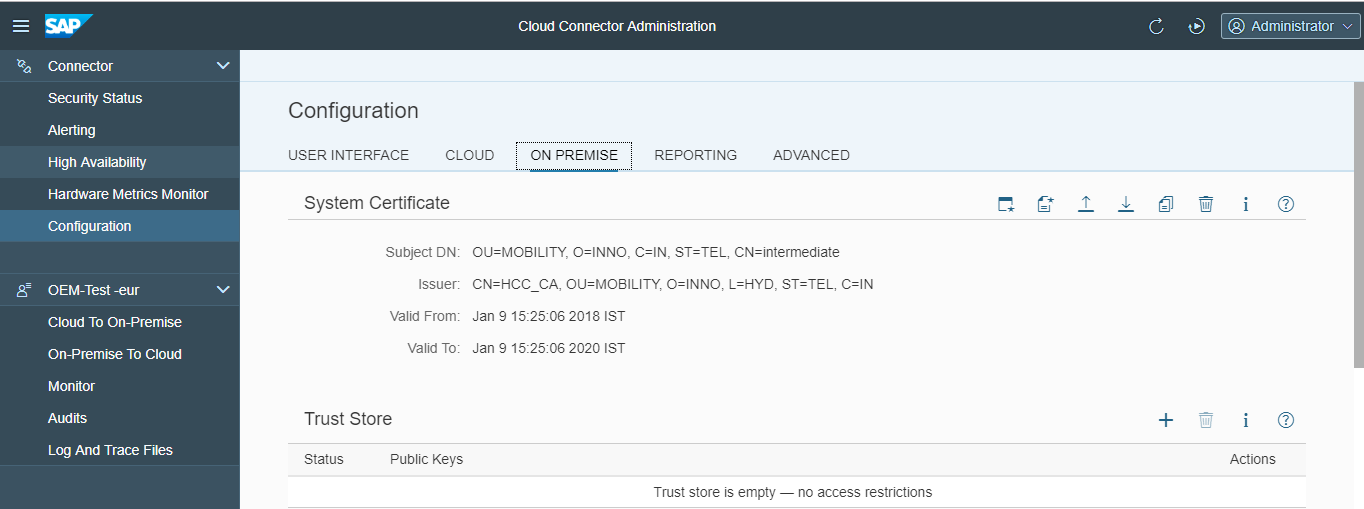

Figure 1. System Certificate section
Upload Root CA file to CA Certificate.
Update the Principal Propagation Settings.

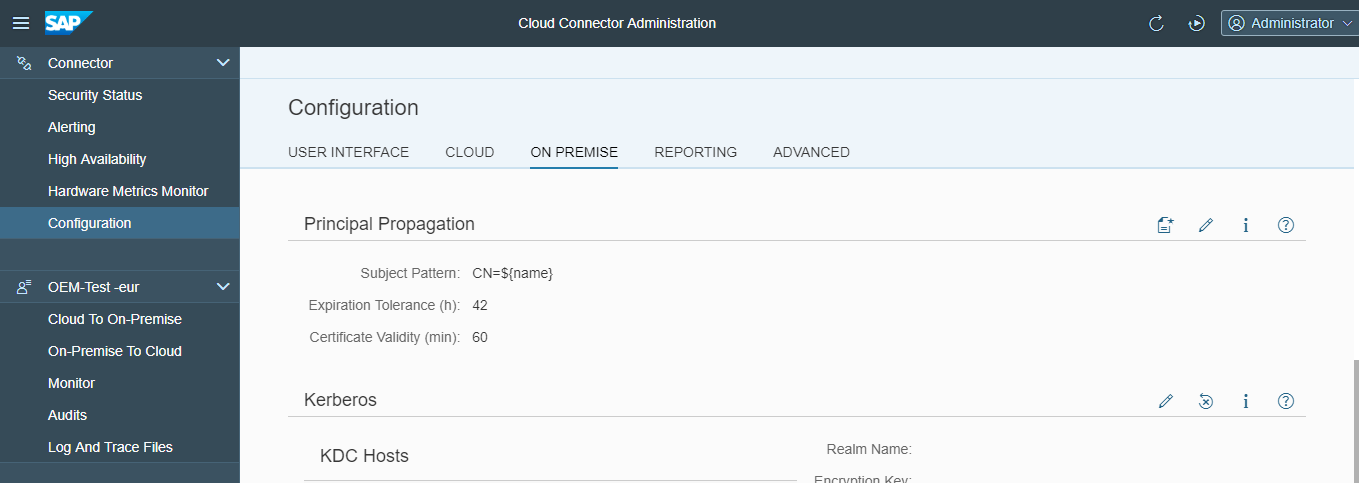

Figure 2. Principal Propagation Settings
Upload the Backend system server certificate into Trust Store.
