Import Transports

Import transports in the order of dependency.

To import Transports:

  1. Extract the zip or .rar files that you received from Innovapptive representative and save the files to your local machine.
  2. Extract and upload/copy the files to the SAP ECC & GW System Directories.
    1. Extract the zip files and copy all co-files (files starting with ‘K90*’) from software deployment package to the USR/SAP/TRANS/COFILES path on SAP ECC & GW system.
    2. Extract the zip files and copy all the data files R90* provided in the software deployment package to the specified path on the SAP ECC &GW system USR/SAP/TRANS/DATA.
  3. Log in to the SAP GW or ECC System (based on the transport being imported).
  4. Navigate to the transaction code STMS_Import.
  5. Navigate to Extras, Other Requests, Add.

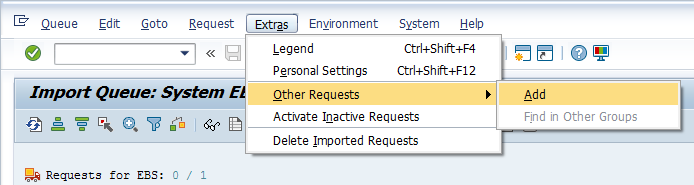

    Figure 1. STMS_Import
  6. Enter the transport number in the Transp. Request field and confirm by pressing the ENTER key (or click the green-colored icon) to attach transports to the import queue.

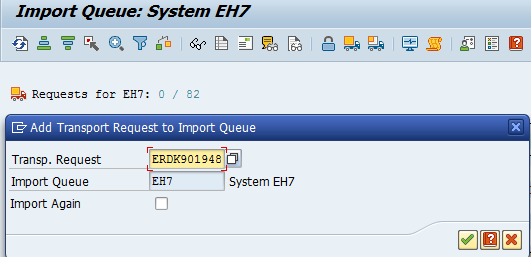

    Figure 2. Add Transport Request to Queue
  7. Click Yes to proceed to the next step.

    Select the transport request and click the Transport icon.

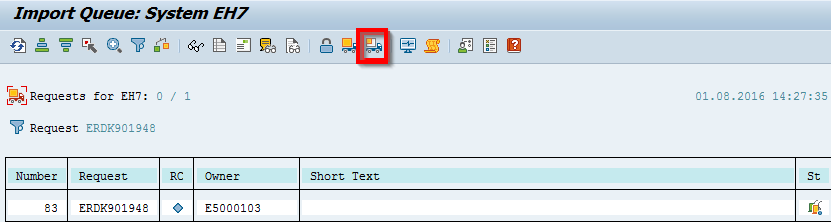

    Figure 3. Import Queue
  8. Enter the target client number in Target Client field.
  9. Select Leave Transport Request in Queue for Later Import and Ignore Invalid Component Version.
  10. Click .

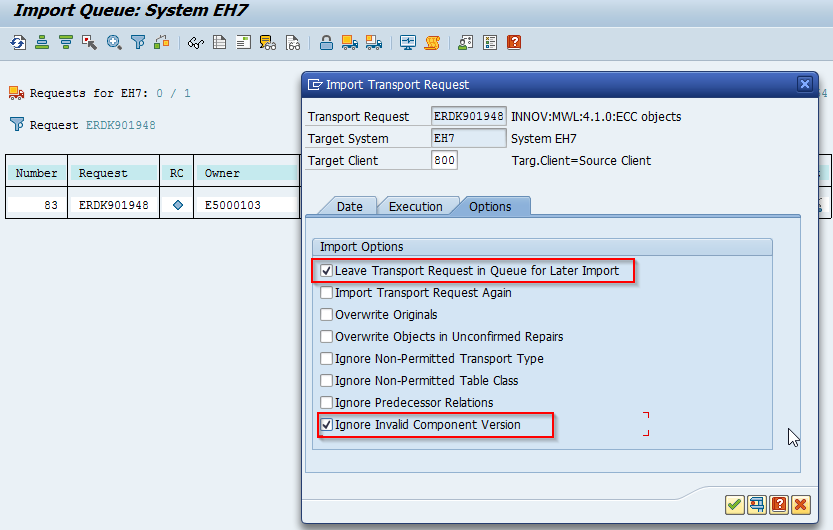

    Figure 4. Import Transport Options
  11. Click Yes in the confirmation screen.
  12. Capture the screenshots of the imported transports.

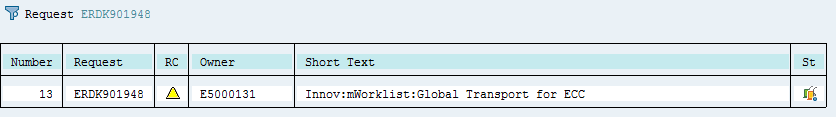

    Figure 5. Imported Transports
  13. Add all transports in the order specified.
    Note: If you face any issues/errors while importing the Transports, send the log files with screenshots and details of the error to your Innovapptive SAP Basis team contact assigned to your project.
