SAP Gateway cache clean up

Clean up the SAP Gateway Cache after importing support packs into the systems.

Login to SAP Gateway system.
Go to transaction /n/iwfnd/cache_cleanup in the gateway system.
Select the Cleanup Cache for all Models checkbox and click Execute.
Go to transaction /n/iwbep/cache_cleanup in the gateway system.
Select the Cleanup Cache for all Models checkbox and click Execute.
Go to transaction smicm in the gateway system.
Navigate to Goto, HTTP Plugin, Server Cache and Invalidate Globally option.

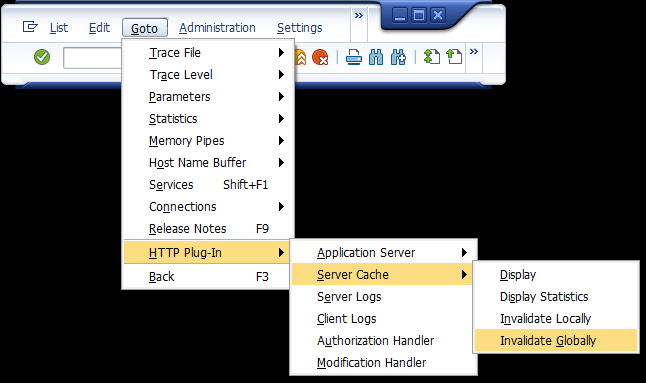

Figure 1. smicm transaction
Click Yes.
