Check Schema Change Indicator

After importing support packs into the systems, perform the following steps to check the Schema Change Indicator.

Login to SAP Gateway system.
Go to tcode – SM30.

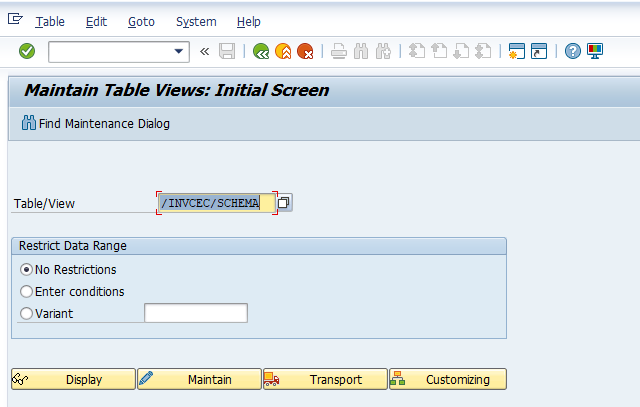

Figure 1. SM30
Click Maintain.
Click New Entries.

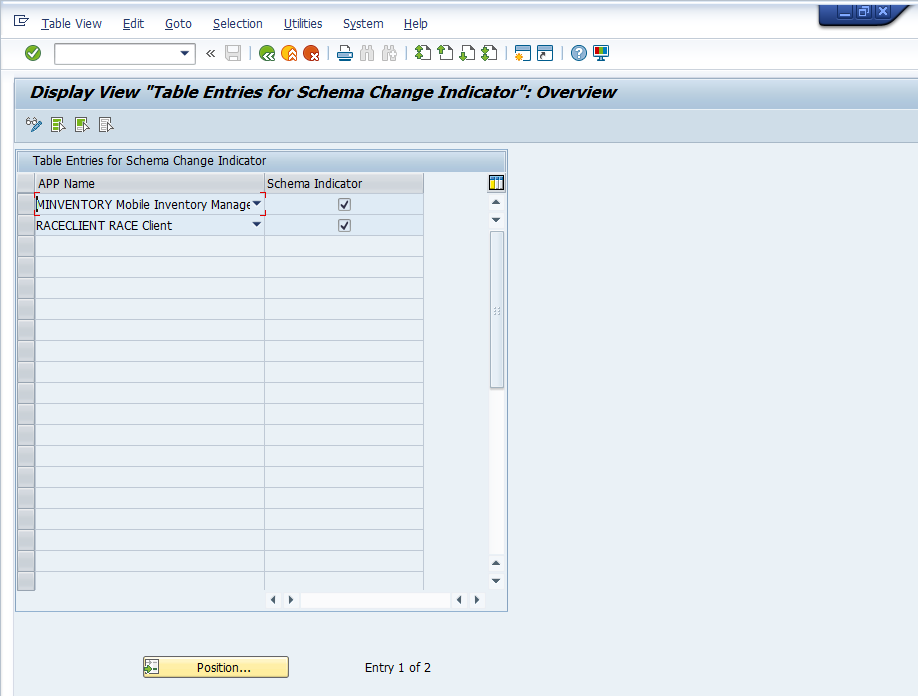

Figure 2. Table Entries for Schema Change Indicator
Select RACE™ Client and mInventory from App Name drop-down and select Schema Indicator checkbox.

Save the changes in Transport Request to move the changes to Quality and Production environment.

Table 1. Schema Details
Base URL	Old Schema	New Schema
/INVCEC/RACE_SRV	/INVCEC/RACE_SRV	RACECLIENT
INVMIM/MINVENTORY_2_SRV/	INVMIM/MINVENTORY_2_SRV/	MINVENTORY
