How to create a Connection for SAP Server

Create a connection to connect to an SAP server and get the master data (locations and assets) from the SAP server to the CWP application through the SAP integration.

To create a connection for SAP server:

  1. Click the Integrations Manager module on the left side pane.
  2. Click the Add button in the Connections section on the left side.

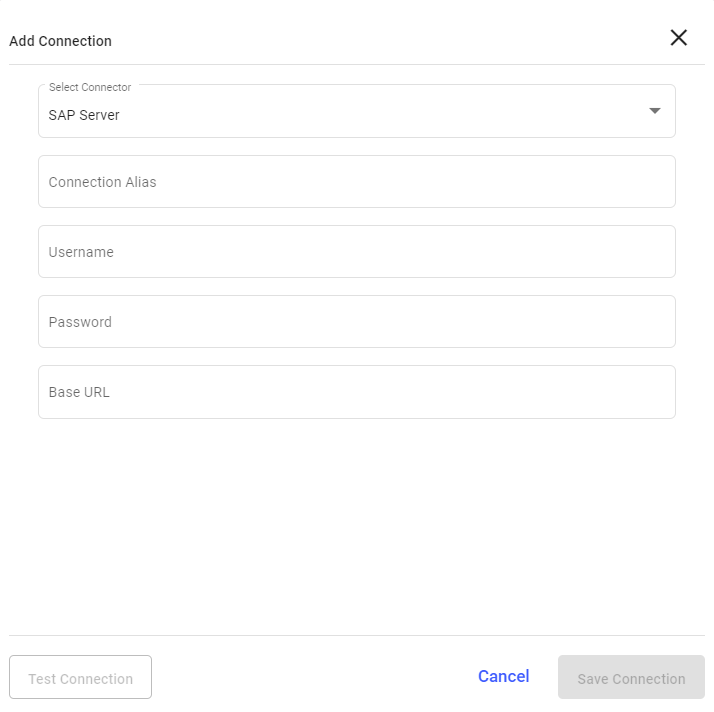

    Figure 1. Add SAP Connection


  3. In the Add Connection window, do the following:
    1. Select SAP Sever from the Select Connector drop-down.
    2. Enter the connection alias name in the Connection Alias field.
    3. Enter the username in the Username field.
    4. Enter the password in the Password field.
    5. Enter the location or asset endpoint URL in the Base URL field.
    6. Click Test Connection to test the connection.
    7. Click Save Connection if the connection is successful.
      Note: The connection will be successful only if there is no existing master data in the application.

    The Connection is created successfully and you can see it in the Connections section.

    In this section, you can,
    • Click the More icon next to the connection and select View Details to see the connection details.
    • Click the More icon next to the connection and select Edit Connection to edit the connection details.
    • Click the More icon next to the connection and select Delete Connection to delete the connection.
