How to add an Integration to SAP

Add an integration point to the SAP server to get the master data.

To add an integration to SAP server:

  1. Click the Integrations Manager module on the left side pane.
  2. Select the SAP Server in the Connections section.
  3. Click Add Integration on the right side.

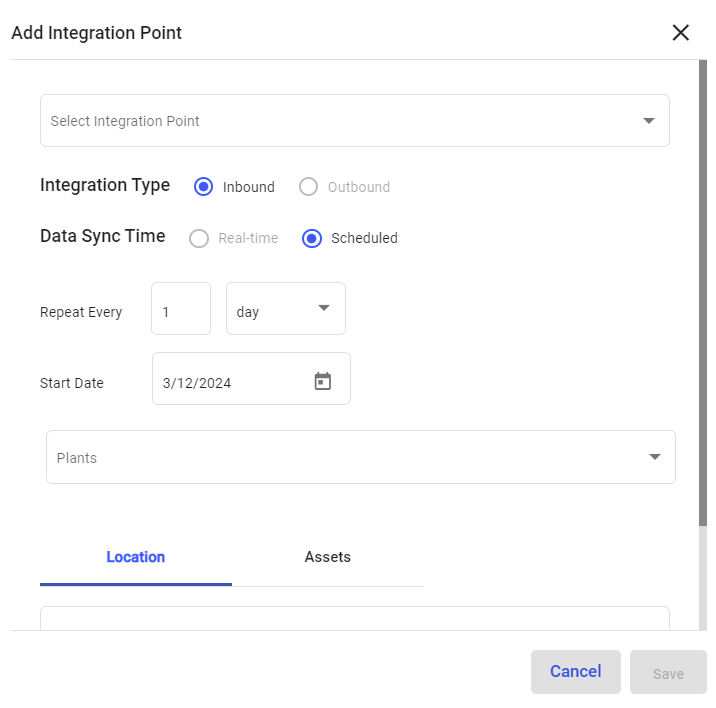

    Figure 1. Add Integration Point


  4. In the Add Integration Point window, do the following:
    1. Select the integration point (Master Data) from the Select Integration Point drop-down.
    2. Select Integration Type as Inbound.
    3. Select Data Synchronization as Scheduled.
    4. Select Repeat Every <number> <day, week, month or year>.
    5. Select Start Date.
    6. Select plant from the Plants drop-down where the location or asset residing.
    7. In the Location or Assets tab, enter the collection in the URL field.
    8. In the Column Configuration section, map the CBO data columns to SAP data columns.
    9. Click Save.

    The Integration Point is created and you can view it in the Integrations section.

    The master data synchronization in the application occurs based on the configured schedule. You can also sync the data manually.
