How to add an Integration to SMTP

Add an integration point to the SMTP server to push the round submissions data to SMTP server.

To add an integration to SMTP server:

Click the Integrations Manager module on the left side pane.
Select the SMTP Server in the Connections section.
Click Add Integration on the right side.

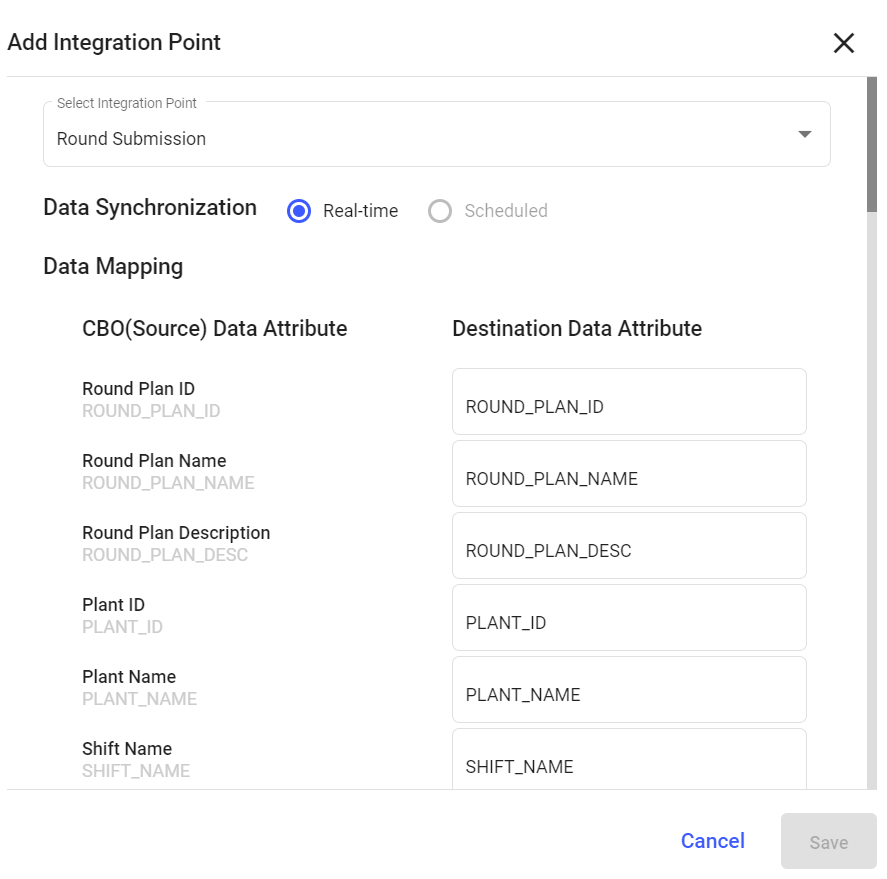

Figure 1. Add Integration Point
In the Add Integration Point window, do the following:
1. Select the integration point (Round Submission) from the Select Integration Point drop-down.
2. Select Data Synchronization as Real-time or Scheduled.
3. In the Data Mapping section, map the CBO (Source) Attributes to Destination Data Attributes.
4. Click Save.
The Integration Point is created and you can view it in the Integrations section.

The .CSV file is generated based on data synchronization schedule and stored in the configured SMTP location.
