Create Measuring Point

Learn how to create a Measuring Point.

To create a measuring point, do the following tasks:

In the Home screen, tap the Create icon next to the Measuring Points module.
Tap the Measuring Point Object field to select Equipment or Functional Location.
Enter the information for Maintenance Plant, Equipment, Functional Location, Characteristics, and Code Group.
Tap "Transfer Measuring Point" to access information about the measuring point.

The "Transfer Reading Supported" checkbox is disabled and can only be modified through the SAP backend.
Enter data in optional fields, such as Measuring Point as a Counter, Target Value, and Text.
Note:
- If you select the Measuring Point as a Counter checkbox, you can optionally fill in the associated data like Counter Over Reading, Counter Data, Annual Estimate, and Text.
- While generating a measurement document for an MP (Measuring Point) with a counter, if the user enters a value greater than the counter's overflow reading, an error message is shown, preventing the user from creating the measurement document.
- Fields that are displayed depend on the UI validations configured in RACE.
Tap Save.

In the pop-up screen, tap View MP List to navigate to the created record.

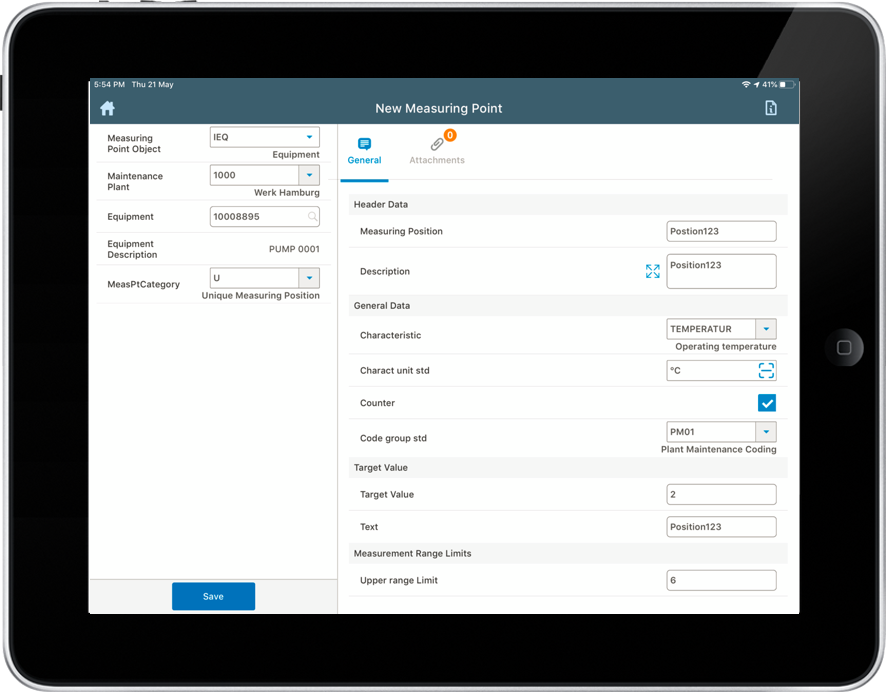

Figure 1. Create Measuring Point
