Activate Gateway FIORI Service

Activate gateway FIORI service, once gateway UI5 service is activated.

To activate the Gateway FIORI Service:
  1. Go to transaction code SICF and search for the service MWO_FIORI_2208.
  2. Right-click the mWorkOrder 2208 FIORI service under default_host > sap >bc > ui5_ui5 > invmwo > mwo_fiori_2208 and click Activate Service.

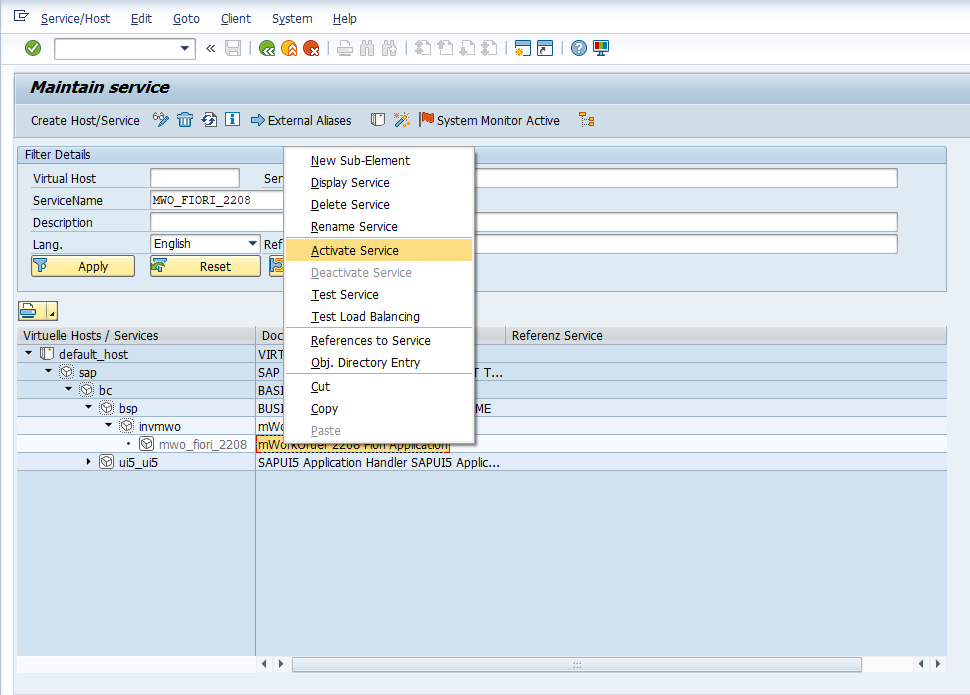

    Figure 1. Activate MWO FIORI Service
  3. Right-click the mWorkOrder 2208 FIORI service under default_host > sap > bc > bsp > invmwo > mwo_fiori_2208 and click Activate Service.

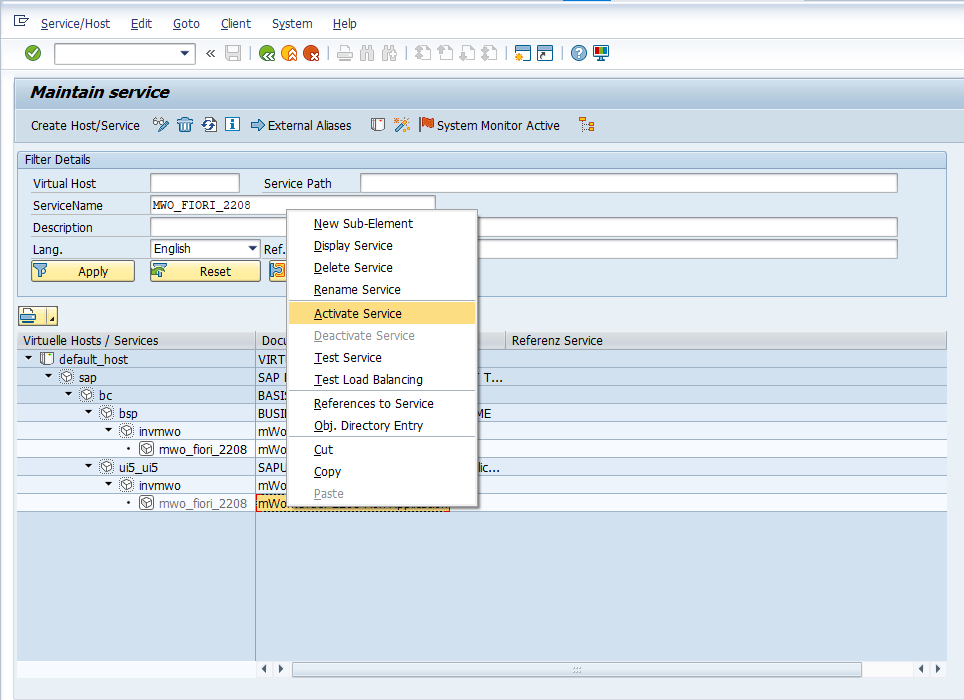

    Figure 2. Activate MWO FIORI Service
  4. Click Yes.

    Access the SAPUI5 web application by replacing the host name, port number and client number in the following template URLs to match your SAP NetWeaver Gateway instance:

    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/mwo_fiori_2208/index.html?sap-client=100.
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/mwo_fiori_2208/index.html?sap-client=100&sap-ui-language=EN&sap-ui-appcache=false.
