Activate Gateway UI5 Service

Activate gateway UI5 service, once mWorkOrder OData services are activated.

To activate Gateway UI5 Service:
  1. Go to transaction code SICF and search for the service MWO_UI5_2208.
  2. Right-click the mWorkOrder 2208 UI5 service under default_host > sap > bc > ui5_ui5 > invmwo > mwo_ui5_2208 and click Activate Service.

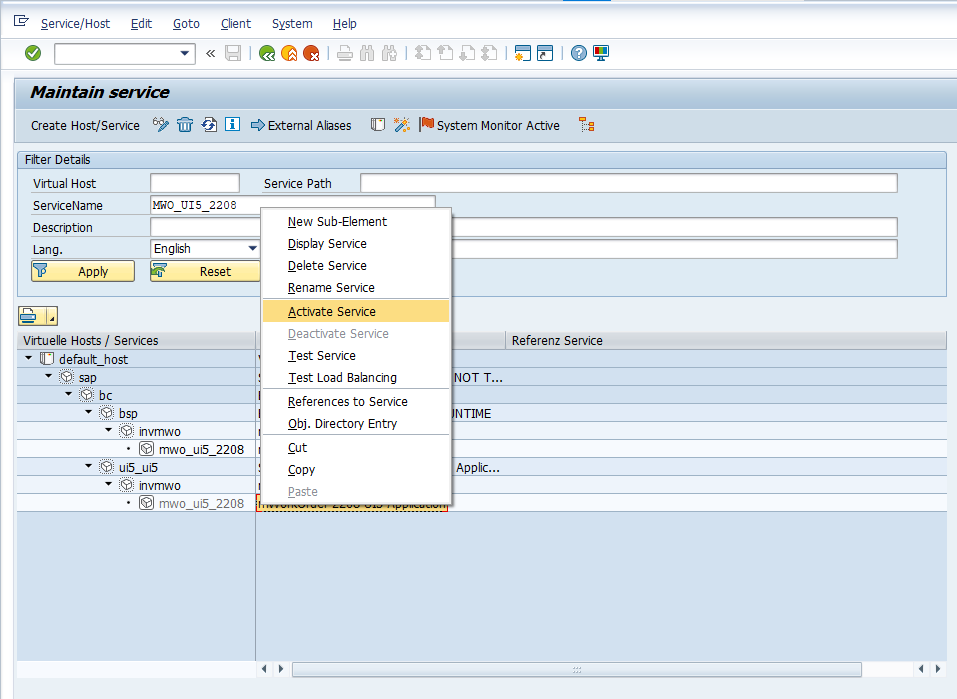

    Figure 1. Activate MWO UI5 Service
  3. Right-click the mWorkOrder 2208 UI5 service under default_host > sap > bc > bsp > invmo > mwo_ui5_2208 and click Activate Service.

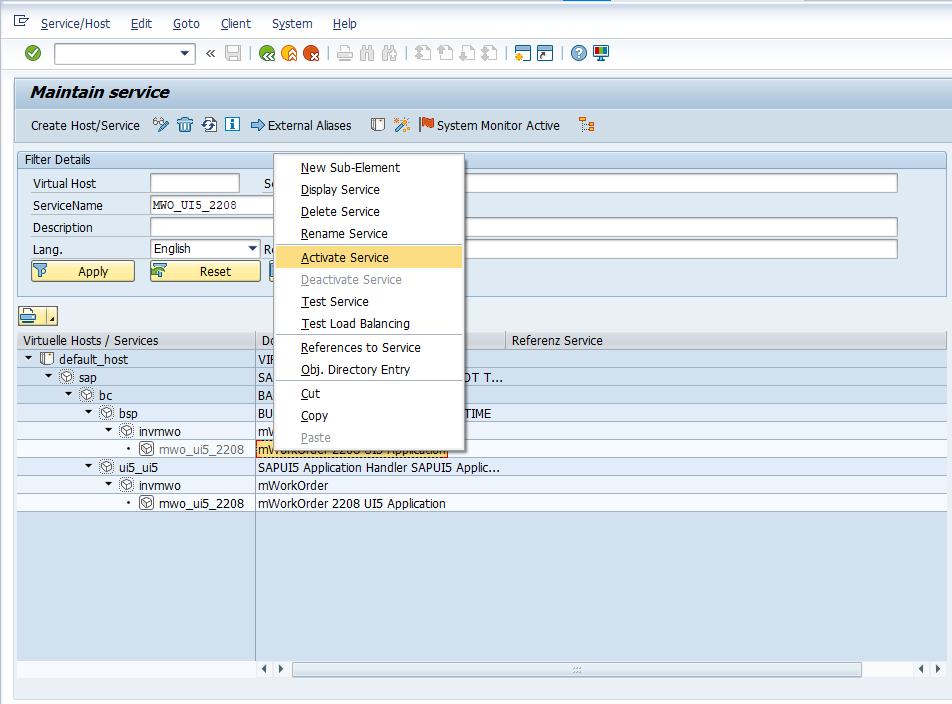

    Figure 2. Activate MWO UI5 Service
  4. Click Yes.
    Access the SAPUI5 web application by replacing the host name, port number and client number in the following template URLs to match your SAP NetWeaver Gateway instance:
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/mwo_ui5_2208/index.html?sap-client=100.
    • http://<hostname>:<port_number>/sap/bc/ui5_ui5/invmwo/mwo_ui5_2208/index.html?sap-client=100&sap-ui-language=EN&sap-ui-appcache=false
