Activate mWorkOrder OData Service

Once add-on and support packs / transports are installed, activate OData services like Work Order, Equipment, Functional Location & Attachments in the SAP NetWeaver Gateway system.

To activate OData services for mWorkOrder:

  1. Run transaction /IWFND/MAINT_SERVICE.
  2. Select the service:
    Table 1. oData Services
    Service Technical Service Name
    Work Order /INVMWO/MWORKORDER_SRV
    Equipment /INVMWO/MWOEQUIPMENT_SRV
    Functional Location /INVMWO/MWOFUNLOCATION_SRV
    Attachments /INVMWO/MWOATTACHMENTS_SRV
    mWorkOrder Operator Round /INVMWO/MWOOPERATORROUND_SRV
  3. Click Activate from the drop-down list of ICF Node options.

    A message appears notifying the package selection.

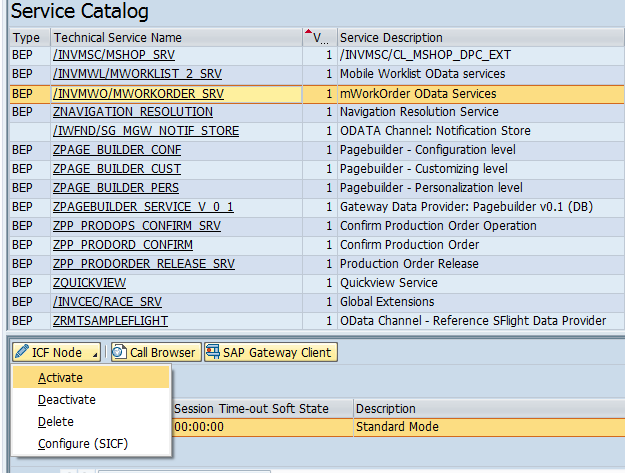

    Figure 1. Activate and Maintain Services
  4. Click the Local Object button and continue to activate the service.

    The OData service is activated and the status turns green.

  5. Click Add System Alias above System Aliases on the right to add the SAP System alias for the selected service.
  6. Click New Entries.
  7. Assign the System Alias for the service and save changes.
