Configure Central Scan

This configuration allows you to scan records using the Central Scanning button and instantly navigate to the record based on the configuration of string in Default Settings.

To configure central scan:

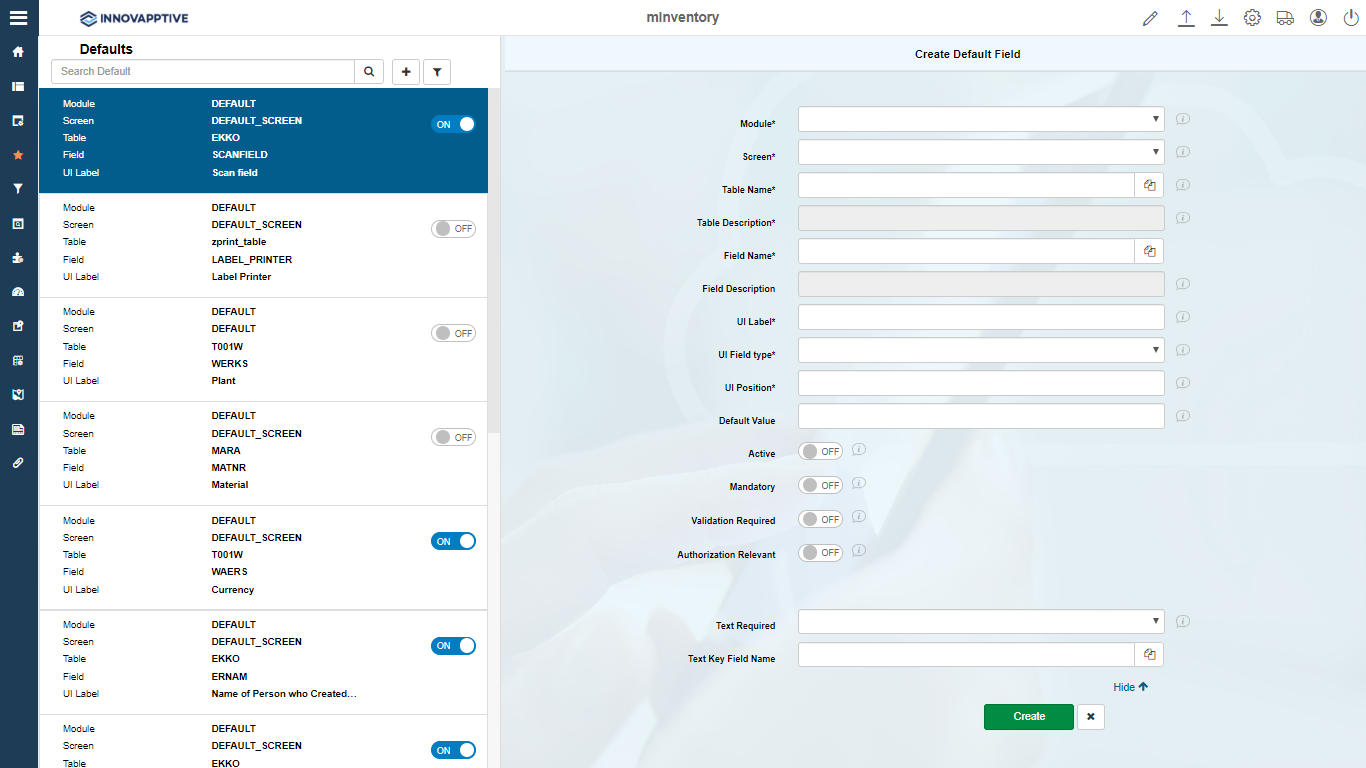

  1. Click Defaults on the left panel.
  2. Search the Default module name in the Search bar.
  3. Select the Default module with the DASHBOARDSCAN field on the left side.
  4. Choose the relevant string and paste it in the Default Value field.
    { "DASHBOARDSCAN": [
{ "APPID": "APP021", "SERIES": "4500,5200", "FIELDNAME": "EBELN", "OPTIONAL": "" },
{ "APPID": "APPE01", "SERIES": "1800", "FIELDNAME": "REFDOCNO_ERP_I", "OPTIONAL": "" },
{ "APPID": "APP260", "SERIES": "0000000000100", "FIELDNAME": "LENUM", "OPTIONAL": "" },
{ "APPID": "APP153", "SERIES": "100001", "FIELDNAME": "IBLNR", "OPTIONAL": "" },
{ "APPID": "APP154", "SERIES": "12", "FIELDNAME": "IVNUM", "OPTIONAL": "" },
{ "APPID": "APPE07", "SERIES": "800000", "FIELDNAME": "DOCNUMBER", "OPTIONAL": "" },
{ "APPID": "APP024", "SERIES": "800", "FIELDNAME": "VBELN", "OPTIONAL": "" },
{ "APPID": "APP032", "SERIES": "1000", "FIELDNAME": "VBELN", "OPTIONAL": "" },
{ "APPID": "APP045", "SERIES": "12,55,522,57,59", "FIELDNAME": "TANUM", "OPTIONAL": "" },
{ "APPID": "APP027", "SERIES": "4900", "FIELDNAME": "MBLNR", "OPTIONAL": "" },
{ "APPID": "APP023", "SERIES": "10000", "FIELDNAME": "VBELN", "OPTIONAL": "" },
{ "APPID": "APP300", "SERIES": "6000", "FIELDNAME": "AUFNR", "OPTIONAL": "" },
{ "APPID": "APP039", "SERIES": "3000", "FIELDNAME": "RSNUM", "OPTIONAL": "" },
{ "APPID": "APP033", "SERIES": "5034", "FIELDNAME": "AUFNR", "OPTIONAL": "" } ] }
  5. Click Save.
