Create a Measuring Point

A Measuring Point is used to track equipment performance and condition over time. It records key measurements that help in monitoring wear, efficiency, and potential failures.

To create a measuring point:

  1. Navigate to the Equipment module.
  2. Select the equipment from the list.
  3. In the Measuring Point tab, tap the Create icon at the bottom of the screen.
  4. In the Create Measuring Point screen, enter the following details:

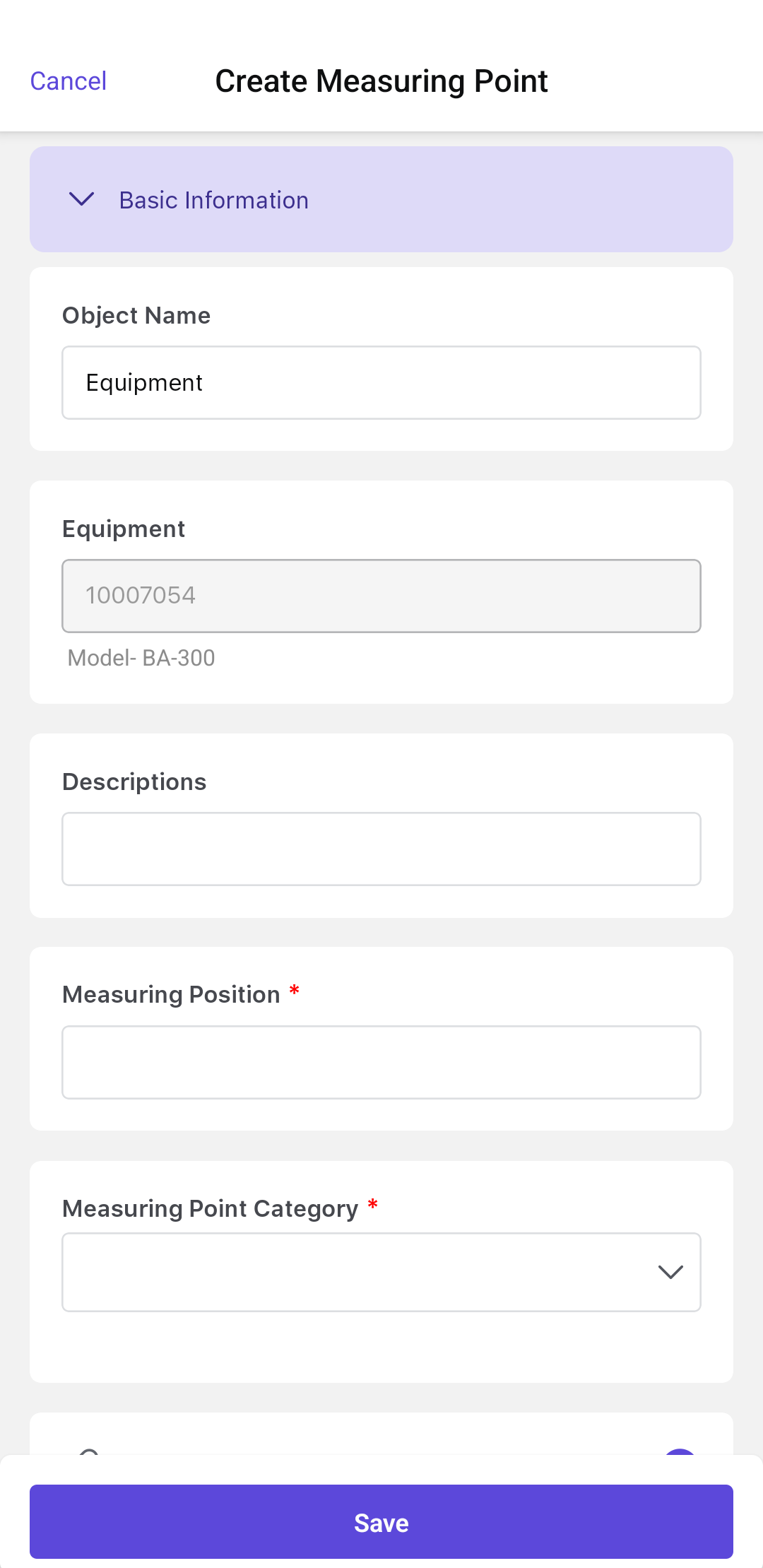

    Figure 1. Create Measuring Point


    Basic Information
    • Description: Provide a name or identifier for the measuring point.
    • Measuring Position: Specify the location on the equipment.
    • Supporting Media: Tap the + icon to attach relevant files or images.
    • Measurement Type: Select the type of measurement from the drop-down.
    • Measuring Date & Time: Automatically filled with the current system date and time.
    • Code Group: Choose the appropriate category for classification.
    • Characteristic: Select the measurement characteristic from the drop-down.
    • Object Category: Define the asset category for accurate tracking.
    • Counter Measuring Point: If applicable, enable the Measuring Point is a Counter? toggle and enter:
      Note:
      You can enter a Counter Difference to automatically update both the Counter Reading and Total Reading. A visual Difference Indicator is displayed in the Measurement List, which helps you quickly identify incremental changes and gain better insights into measurement trends.
      • Counter Reading (current value)
      • Annual Estimate (expected yearly usage)
      • Comments (additional details)
    Measurement Range
    • Lower Range and Upper Range Limits: Define acceptable measurement thresholds.
  5. Tap Save to finalize and create the measuring point.

    This ensures accurate tracking of equipment conditions, aiding in predictive maintenance and operational efficiency.
