View Functional Location Details

A Functional Location is a fixed position within a plant, building, or facility where equipment is installed and maintenance tasks are performed. It serves as a reference point for organizing assets, tracking maintenance activities, and managing historical data.

Unlike equipment, which can be moved or replaced, a functional location remains permanent. It helps in:
  • Structuring asset management efficiently.
  • Streamlining maintenance workflows.
  • Ensuring compliance with safety and operational standards.
  • Providing a clear reference for work orders and inspections.

By defining functional locations, businesses can improve asset tracking, reduce downtime, and optimize maintenance planning.

To view the Functional Location details:

  1. Navigate to the More screen.
  2. Select the Functional Location module.
  3. In the Functional Location screen, tap the functional location from the list to view details.

    Or

    Tap the Scan icon at the bottom-right corner and scan the QR code on the location. The scanner reads the code and displays the functional location details.

    Tap the Hierarchy icon in the top-right corner to view the complete structure of the functional location, including all connected equipment and BOMs across multiple levels.

    To navigate upward through the hierarchy:
    • Tap the Up Arrow icon to view the immediate parent and its sibling locations.
    • Continue tapping to move upward through each level.
    • When you reach the top-level functional location, the icon becomes greyed out, indicating no further parent exists.

Details – Access Functional Location Information

This tab provides key information about the selected functional location, organized under the following sections:
  • General Description: Shows an overview of the location, including description, model number, and other relevant details.
  • Attachments (DMS): Displays Document Management System (DMS) files associated with the functional location.
  • Location / Directions: Shows the physical location within the maintenance plant and any instructions for reaching the site.
  • Organization: Displays organizational details such as Planning Plant, Cost Center, etc.

    Tap to view the list of equipment associated with this location.

  • Structure: Provides details about the location’s structural hierarchy.
  • Classification: Displays classification details defined for this location.
  • Warranty: Shows any warranty details associated with the functional location.
  • Partner: Lists business partners related to this location, if configured.

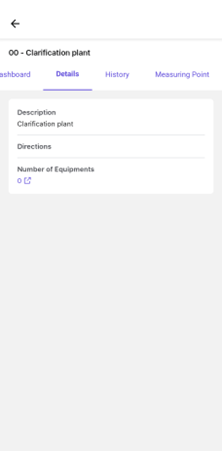

Figure 1. Functional Location - Details


History – Track Equipment and Maintenance Records

Check past maintenance activities and equipment history:
  • View previously associated equipment.
  • Track maintenance and work order history.

Measuring Point – Monitor Equipment Performance

This tab helps track performance data and readings from measuring points.
  • View measuring points with details such as:
    • Measuring Point ID
    • Measuring Position
    • Measuring Description
    • Last Reading and Previous Readings Count.
  • Tap the reading link to review historical readings.
  • Take a new reading by selecting Take Reading in the Reading screen.
  • Add a New Measuring Point by tapping the Add icon. For more information, see Create a Measuring Point.

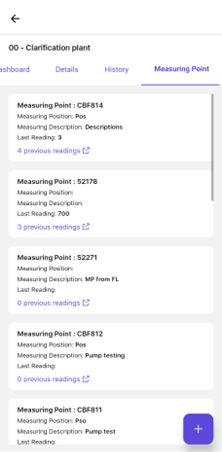

Figure 2. Functional Location - Measuring Point
