Install RACE™ SAP® ECC and Gateway Add-Ons
Add-On: All the transports of previous releases and the transports of the current release are packaged into a single add-on for the main release. For example, 2003, 2006 and so on. Install the add-on for the current release that is provided by Innovapptive representative.
Activate UI5 Service
Activate UI5 Service once you have activated RACE™ OData Service.

Title and Copyright
Copyright and Terms of Use for Upgrade Guide for mInventory, a Mobile Inventory Management Solution of Connected Workforce Platform^TM.
Preface
Understand audience, know related documents and products and conventions followed in this document.
Upgrade mInventory
Ensure that the pre-upgrade requirements are met before you upgrade mInventory. See Pre Install or Pre Upgrade Configurations Guide for information.
Back up/Save RACE™ table configurations
Upgrade process can impact data in the following SAP database tables. Download and back up the RACE™ table configurations using the /INVCEC/RACE_UPLOAD_DOWNLOAD program before importing the updates.
Install RACE™ SAP® ECC and Gateway Add-Ons
Add-On: All the transports of previous releases and the transports of the current release are packaged into a single add-on for the main release. For example, 2003, 2006 and so on. Install the add-on for the current release that is provided by Innovapptive representative.
- Install RACE™ SAP® ECC and Gateway Add-ons and support packs
  Install the add-ons and support packs at one go using the steps given below. However, if you have already installed add-ons and you want to install the support packs (hotfixes), follow the procedure detailed in topics/supportpack_installation.html.
- Install RACE™ SAP® ECC and Gateway Support packs
  If you have installed the add-ons and are installing only the support pack (hotfixes), follow the steps described below.
- Activate RACE™ OData Service
  Once add-on and support packs are installed, activate RACE™ OData Service.
- Activate UI5 Service
  Activate UI5 Service once you have activated RACE™ OData Service.
- Activate FIORI Service
  Activate FIORI service after you have activated UI5 service.
- Import RACE™ SAP® ECC and Gateway ABAP Transports
  Innovapptive recommends that you install Add-ons instead of importing Transports for error free installation. However, if you prefer to import Transports, import them in the order listed in the table.
Install mInventory SAP® ECC and Gateway Add-Ons
Add-On: All the transports of previous releases and the transports of the current release are packaged into a single add-on for the main release. For example, 2003, 2006 and so on. Install the add-on for the current release that is provided by Innovapptive representative.
Check Schema Change Indicator
After importing support packs into the systems, perform the following steps to check the Schema Change Indicator.
SAP Gateway cache clean up
Clean up the SAP Gateway Cache after importing support packs into the systems.
Configure SAP Gateway for mInventory
SAP Material Management (MM) users can use mInventory to do the following:
Configure RACE™ for mInventory
Innovapptive’s Connected Workforce Platform™ uses built-in integrations to connect your SAP®, IBM Maximo, and other back-office systems with mobile applications. This helps organizations bridge communication and information gaps between executive teams, field technicians, plant operators, warehouse operators, maintenance engineers, and back-office staff. Connect data points across cloud and on-premise networks to quickly and easily.
SAP transactions and tables for mInventory
The following table provides the list of key SAP transactions and tables for mInventory.
Deploy MIM UI5 package to SAP Cloud platform (SCP)
Do the following to deploy MIM UI5 package to SCP:
Implement BADIs
mInventory uses SAP oDATA based on RESTful design. mInventory performs service calls to read and post data from the SAP Business backend system. These service calls invoke remote enabled function modules in the backend systems to either get or post data depending on the direction of the call. Like Standard SAP code, Innovapptive Add-On code objects cannot be modified in customer systems.
Generate Secondary Indices
To improve the application performance, for tables containing large amounts of data, generate secondary indices for key tables relevant for the product.
Download App and Install
Before you download new version of the App, do the following:

Activate UI5 Service

Activate UI5 Service once you have activated RACE™ OData Service.

To activate UI5 Service:

Go to the transaction code SICF and navigate to /default_host/sap/bc/bsp/invcec/race_2203_ui5.
Right-click RACE 2203 UI5 and click Activate Service.

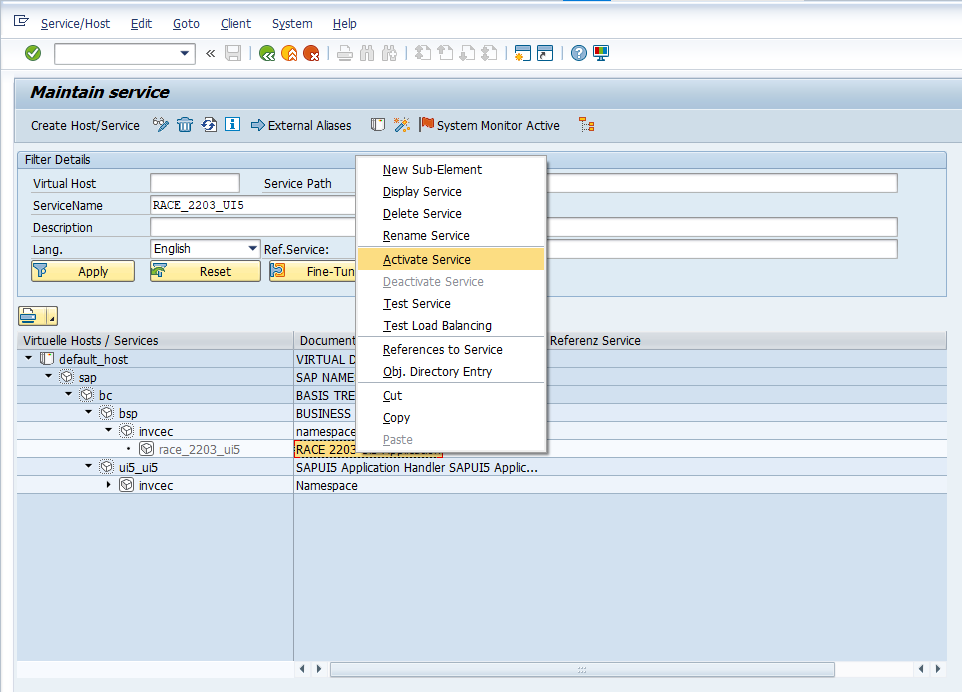

Figure 1. Activate RACE BSP Service
Click Yes.
Go to /default_host/sap/bc/ui5_ui5/ invcec/race_2203_ui5.

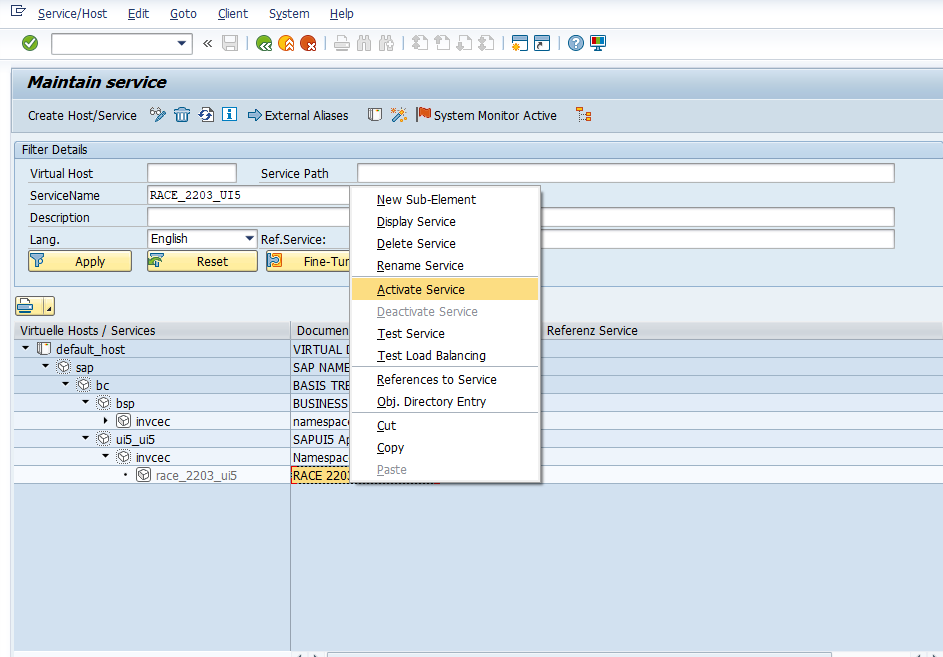

Figure 2. Activate RACE UI5 service
Right-click RACE 2203 UI5 and click Activate Service.
Click Yes.
Access the SAPUI5 web application by replacing the host name, port number and client number in the following template’s URLs to match your SAP NetWeaver Gateway instance:
- http://<hostname>:<port_number>/sap/bc/ui5_ui5/invcec/race_2203_ui5/index.html?sap-client=100
- http://<hostname>:<port_number>/sap/bc/ui5_ui5/invcec/race_2203_ui5/index.html?sap-client=100&sap-ui-language=EN&sap-ui-appcache=false
