Configure SAP Gateway for mInventory
SAP Material Management (MM) users can use mInventory to do the following:
SAP Log Table for failed transactions when in Offline mode
View the logs of transactions that failed when the device is not connected to the network, in the /n/INVMGO/OFFOTLOG report.

Title and Copyright
Copyright and Terms of Use for Upgrade Guide for mInventory, a Mobile Inventory Management Solution of Connected Workforce Platform^TM.
Preface
Understand audience, know related documents and products and conventions followed in this document.
Upgrade mInventory
Ensure that the pre-upgrade requirements are met before you upgrade mInventory. See Pre Install or Pre Upgrade Configurations Guide for information.
Back up/Save RACE™ table configurations
Upgrade process can impact data in the following SAP database tables. Download and back up the RACE™ table configurations using the /INVCEC/RACE_UPLOAD_DOWNLOAD program before importing the updates.
Install RACE™ SAP® ECC and Gateway Add-Ons
Add-On: All the transports of previous releases and the transports of the current release are packaged into a single add-on for the main release. For example, 2003, 2006 and so on. Install the add-on for the current release that is provided by Innovapptive representative.
Install mInventory SAP® ECC and Gateway Add-Ons
Add-On: All the transports of previous releases and the transports of the current release are packaged into a single add-on for the main release. For example, 2003, 2006 and so on. Install the add-on for the current release that is provided by Innovapptive representative.
Check Schema Change Indicator
After importing support packs into the systems, perform the following steps to check the Schema Change Indicator.
SAP Gateway cache clean up
Clean up the SAP Gateway Cache after importing support packs into the systems.
Configure SAP Gateway for mInventory
SAP Material Management (MM) users can use mInventory to do the following:
- Prerequisites for SAP Gateway Configuration
- Map source and destination systems for mInventory
  Set up the source and destination systems.
- Configure stock categories for Stock Overview
  Configure Stock categories such as Unrestricted, Blocked, Quality Inspection. Once configured these categories appear in the Stock Overview module of mInventory.
- Configure output types for Label Printing
  Configure Output types for label printing in Goods Receiving and Goods Issue modules
- SAP Log Table for failed transactions when in Offline mode
  View the logs of transactions that failed when the device is not connected to the network, in the /n/INVMGO/OFFOTLOG report.
- Enable Ping ID support for iOS
- Configure SAP HR Master Data
  Configure master data for user details like user ID, username, and user profile photo in SAP. These details are displayed on User Profile screen of the application.
Configure RACE™ for mInventory
Innovapptive’s Connected Workforce Platform™ uses built-in integrations to connect your SAP®, IBM Maximo, and other back-office systems with mobile applications. This helps organizations bridge communication and information gaps between executive teams, field technicians, plant operators, warehouse operators, maintenance engineers, and back-office staff. Connect data points across cloud and on-premise networks to quickly and easily.
SAP transactions and tables for mInventory
The following table provides the list of key SAP transactions and tables for mInventory.
Deploy MIM UI5 package to SAP Cloud platform (SCP)
Do the following to deploy MIM UI5 package to SCP:
Implement BADIs
mInventory uses SAP oDATA based on RESTful design. mInventory performs service calls to read and post data from the SAP Business backend system. These service calls invoke remote enabled function modules in the backend systems to either get or post data depending on the direction of the call. Like Standard SAP code, Innovapptive Add-On code objects cannot be modified in customer systems.
Generate Secondary Indices
To improve the application performance, for tables containing large amounts of data, generate secondary indices for key tables relevant for the product.
Download App and Install
Before you download new version of the App, do the following:

SAP Log Table for failed transactions when in Offline mode

View the logs of transactions that failed when the device is not connected to the network, in the /n/INVMGO/OFFOTLOG report.

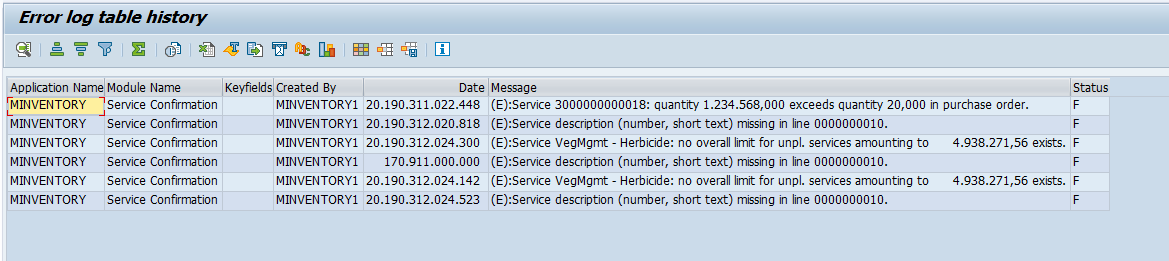

Reason for failure is displayed for each transaction. You can delete/clean the old records using the Delete Indicator checkbox.

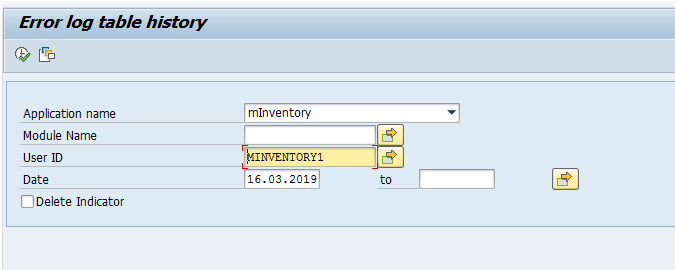

Figure 1. Error Log Table history Filters

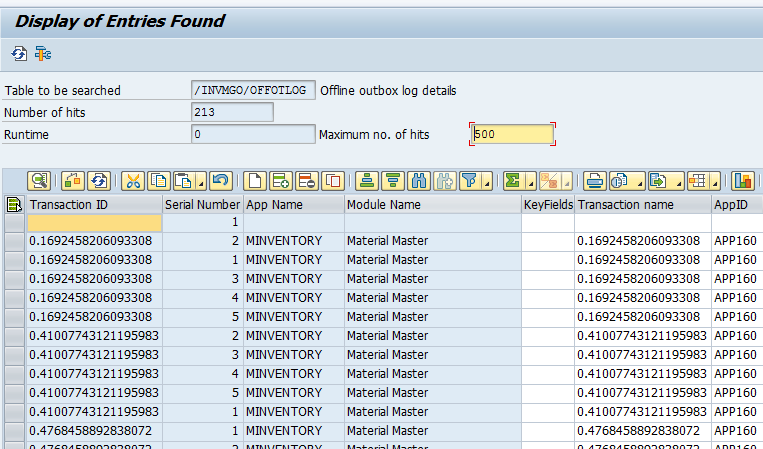

All the entries are stored in SAP ECC custom table /INVMGO/OFFOTLOG.
