Create a Measurement Document

You can create a measurement document for Measuring Points in Operations, Objects, and Reading List for the work order from the operation detail screen while confirming the operation.

You can also add attachments in the measurement document and view the history of previously added measurement points.

To create a measurement document for a work order:

Select the operation under the Operations tab.
Tap the Measuring Document icon in the Operation Details.

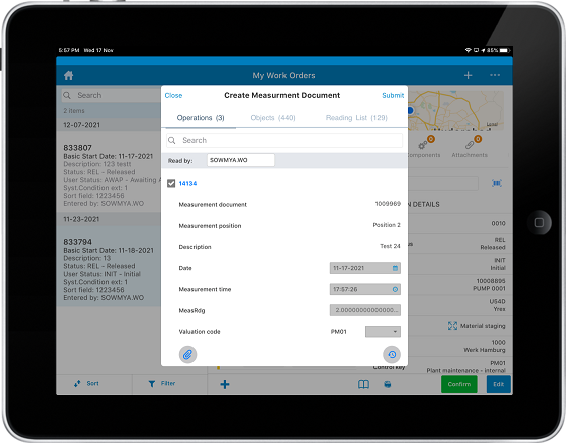

Figure 1. Measurement Document
In the Create Measurement Document window, tap the Operations tab to fill the operation related measuring points.
Search and select the measuring document ID that you want to create, and enter the required information in the following fields:
- MeasRdg: Enter the Measurement Reading in the field.
- Valuation code: Select the Valuation Code from the list.
- Date: Enter the measurement date.
- Measurement time: Enter the measurement time.
Tap the Objects tab to fill the object related measuring points.
Tap the Reading List tab to fill the reading list related measuring points.
Tap Submit.
Note:
- You can capture only one measurement reading for a measuring point. It depends on the configuration in RACE.
- Once the readings are captured and saved, the Measuring Points are displayed in disabled mode.
- You can add attachments against the measurement document using the Add Attachments icon. The Add Attachments icon is enabled only after the Measuring Document is posted.
- You can view the history of previously added measuring points using the History icon.
