Create an Emergency Work Order

You can create an Emergency Work Order for which Release, Operations Confirmation and Goods Issues happen automatically.

To create an Emergency Work Order:

Tap the Option Menu icon on the Work Orders module in the home screen.
Tap Emergency WO.
Select the Order Type in Emergency WO pop-up and tap Create.
In the left section of the Create Work Order screen, verify/enter the following:
- Order Type: This value is defaulted based on your selection.
- Priority: Select the Priority from the list.
- Plant: Select the Plant from the list.
- Description: Enter description.
- User Status: Auto populates based on configured default settings.
Tap Save.
In the pop-up screen, tap View WO List to navigate to the work order that you created and add additional details. Work Order Timer shows the updated time even if the app is crashed or forcibly closed (terminated from background).

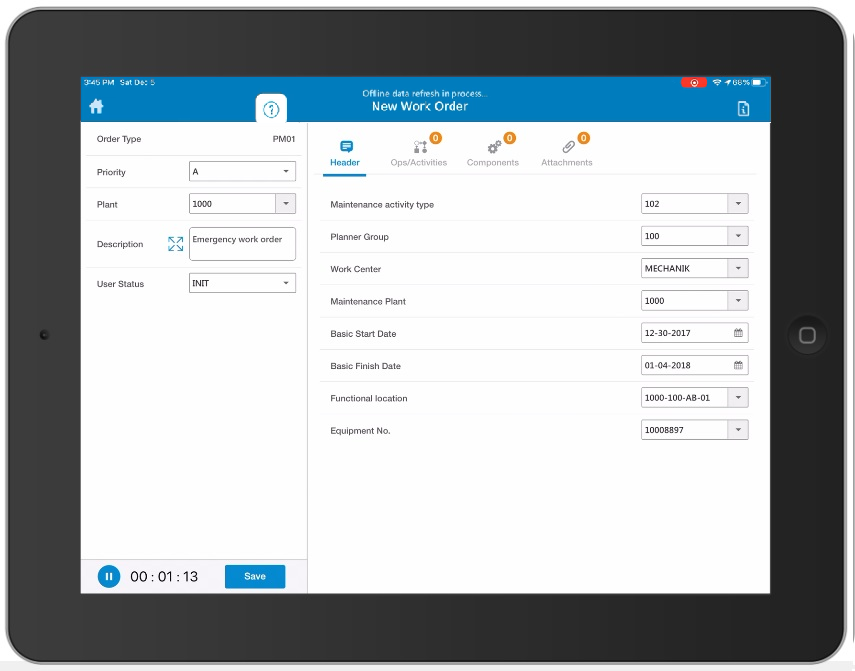

Figure 1. Create Emergency Work Order

For information on how to create a work order, see the following:
After the Work Order Timer is stopped,
- Work Order Operations/Activities are fully confirmed.
- Goods Issue is processed for the Components.
- Work Order status is set to Released.
