Assign Embedded form to dynamic screen (tab)

Once you configure a form and fields for the form, you can assign the form to the transaction screen.

To add form to dynamic screen:
  1. Click Screens on the left panel.
  2. Select the Dynamic screen where you want to view the form details. See Create Custom Tabs (Screens) to create a dynamic screen.
  3. Do the following configurations:
    Table 1. Embedded Form attributes
    Field Value
    Module Name of the module where the dynamic screen is configured.
    Screen Name of the screen where the embedded form is configured.
    Screen Type Dynamic Tab
    Screen Area Body
    Element Tab
    Element Type Multi Form Tab
    Action Type GET
    Layout Horizontal
    Form Name Enter the name of the forms or click to select the forms in Choose Forms pop up window.
  4. Click Save.
  5. Configure the form in the ECC table /INVMGO/DOCFORM. Configure access role for dynamic forms.

    Dynamic form is displayed in the mobile app as:

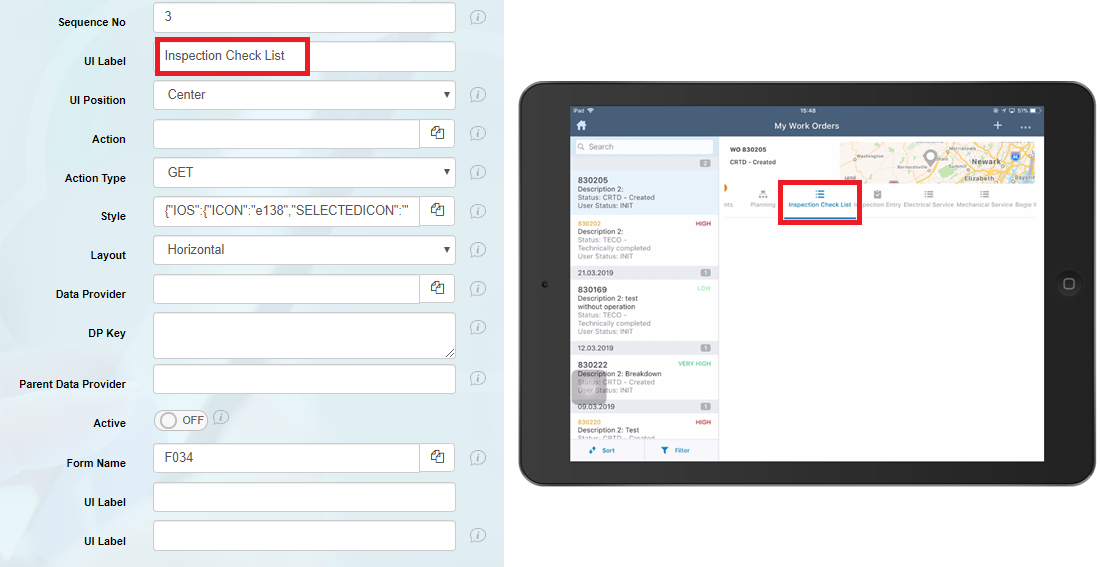

    Figure 1. Dynamic Screen - Embedded Form
