Configure Standalone dynamic form

The created form can be used as a standalone form too

To configure Standalone form:
  1. Click Scoping on the left panel.
  2. Click the Add icon next to the search field.
  3. Do the following configurations:
    Table 1. Dynamic Form - Scoping
    Field Value
    Type Dynamic Form
    System ID ECC
    Module Name Name of the module where the dynamic screen is configured.
    App ID Unique identity (alpha numeric) to specify the ID for the application.
    Description Description of the dynamic form
    Title Title of the dynamic form
    Action Define the action to be performed when user clicks on the element (tiles, buttons, icons, etc.) on the screen. Click icon to define Action Type and Screen Name on the Choose Actions window.
    Active ON
  4. Click Create.
  5. Click Screens on the left panel.
  6. Select the Dynamic screen where you want to view the form details. See Create Custom Tabs (Screens) to create a dynamic screen.
  7. Do the following configurations:
    Table 2. Standalone Form attributes
    Field Value
    Module Name of the module where the dynamic screen is configured.
    Screen Name of the screen where the Standalone form is configured.
    Screen Type Create Screen
    Screen Area Body
    Element Form
    Element Type Header Form
    Action Select Screen Name
    Layout Horizontal
    Form Name Enter the name of the forms or click to select the forms in Choose Forms pop up window.
  8. Click Save.
    Note: Similarly, configure the screen components like buttons for the form.
  9. Configure the form in the ECC table /INVMGO/DOCFORM. See Configure access role for dynamic forms.

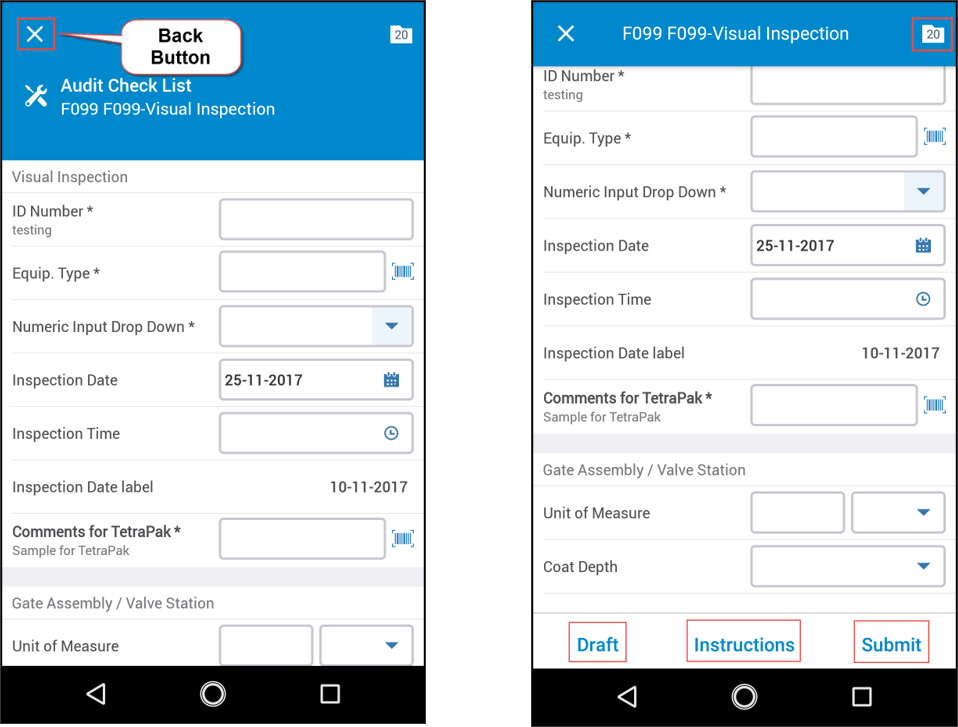

    Standalone forms are displayed in the mobile app as:

    Figure 1. Dynamic Screen - Standalone Form
