Issue Materials / Goods for Maintenance / Repair

When a work order is released and assigned, a material document is generated for the materials that are required for repair or maintenance. The stores personnel, based on the material document, issue the required materials.

To issues materials for maintenance / repair, do the following tasks:

In the right side section of the Work Orders screen, tap the Components tab.
A list of components including the associated material documents gets displayed.
Tap to select the Bill of Materials (BOM) record and then tap Goods Issue.

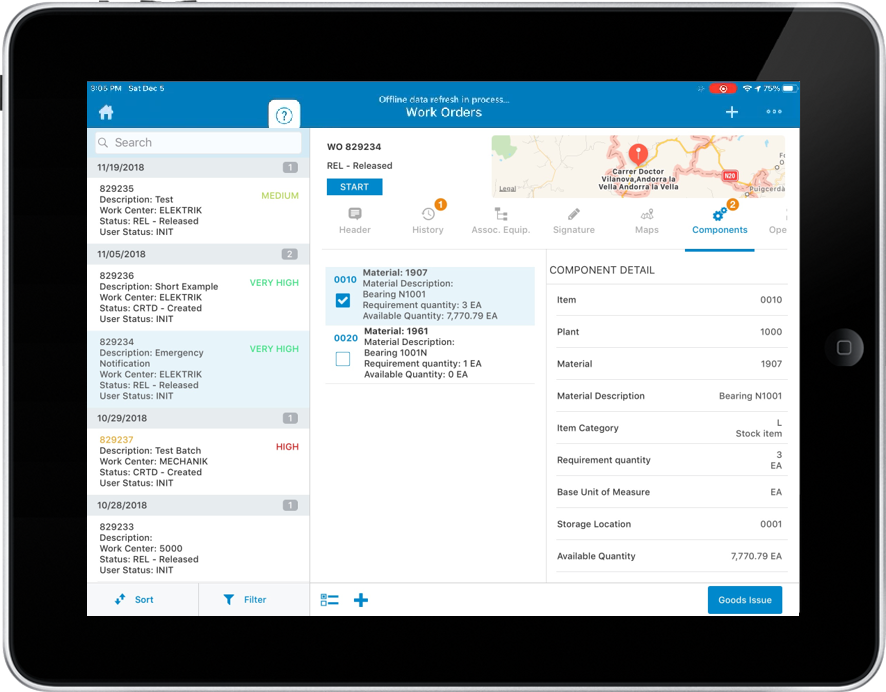

Figure 1. Posting Goods Issue

A message appears asking whether you want to issue the goods.
Tap Yes.
Goods are now issued for maintenance or repair work based on this activity.

Note:
You can select multiple components within a Bill of Materials (BOM) and choose operations for each selected component individually before adding them to the Work Order.
